Analog Devices ADG819BCBZ-REEL7
MPNADG819BCBZ-REEL7
End of Life
IC SWITCH SPDTX1 600MOHM 6WLCSP
$3.66408Price · pay online now

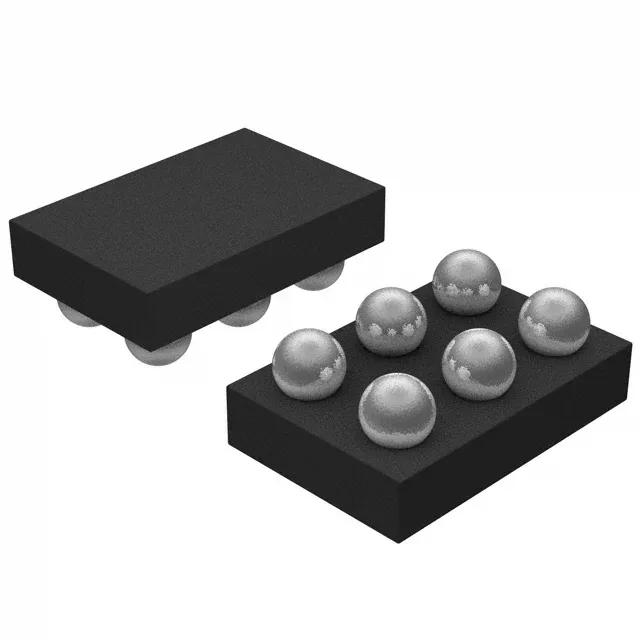

Packaging6-WFBGA, WLCSP
RoHSROHS3 Compliant
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Surface Mount |
| Voltage - supply, single (V+) | 1.8V ~ 5.5V |
| Current - leakage (IS(off)) | 250pA |
| Operating temperature | -40°C ~ 85°C (TA) |
| -3db bandwidth | 17MHz |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Crosstalk | -72dB @ 100kHz |
| Case | 6-WFBGA, WLCSP |
| Switch circuit | SPDT |
| Charge injection | 20pC |
| Number of circuits | 1 |
| On-State resistance | 600mOhm |
| Switch time (Ton, toff) | 45ns, 16ns |
| Multiplexer (Demultiplexer circuit) | 2:1 |
| Channel-to-Channel matching (ΔRon) | 60mOhm |
| Channel capacitance (CS(off), CD(off)) | 80pF |
