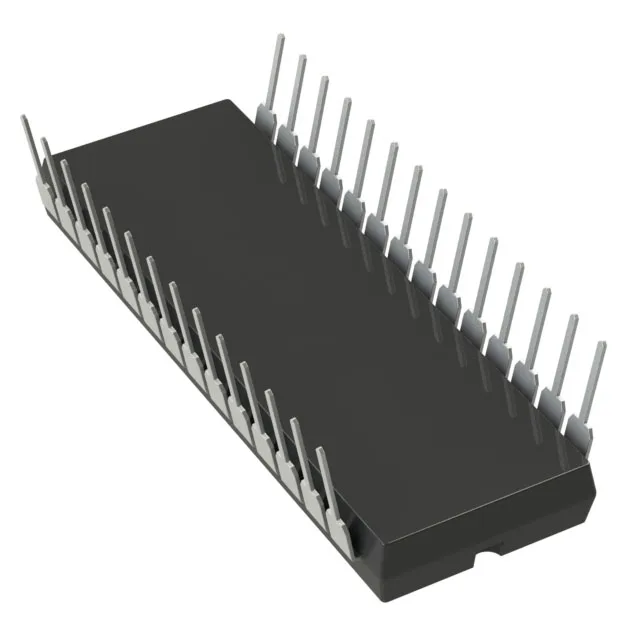

Analog Devices ADG507AKNZ
MPNADG507AKNZ
End of Life
IC MUX DUAL 8:1 300OHM 28DIP
$40.43856Price · pay online now
$40.44 / ea
6 in stock — maximum per order · 3–4 days lead time
Packaging28-DIP (0.600", 15.24mm)
RoHSROHS3 Compliant
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Through Hole |
| Voltage - supply, dual (V±) | ±10.8V ~ 16.5V |
| Voltage - supply, single (V+) | 10.8V ~ 16.5V |
| Current - leakage (IS(off)) | 1nA |
| Operating temperature | -40°C ~ 85°C (TA) |
| Package | Tube |
| Case | 28-DIP (0.600\", 15.24mm) |
| Charge injection | 4pC |
| Number of circuits | 2 |
| On-State resistance | 300Ohm |
| Switch time (Ton, toff) | 300ns, 300ns |
| Multiplexer (Demultiplexer circuit) | 8:1 |
| Channel-to-Channel matching (ΔRon) | 15Ohm |
| Channel capacitance (CS(off), CD(off)) | 5pF, 22pF |
