Analog Devices ADG1402BCPZ-REEL7
MPNADG1402BCPZ-REEL7
End of Life
IC SWITCH SPST 1OHM RON 8LFCSP
$11.12748Price · pay online now
$11.13 / ea
5 in stock — maximum per order · 3–4 days lead time

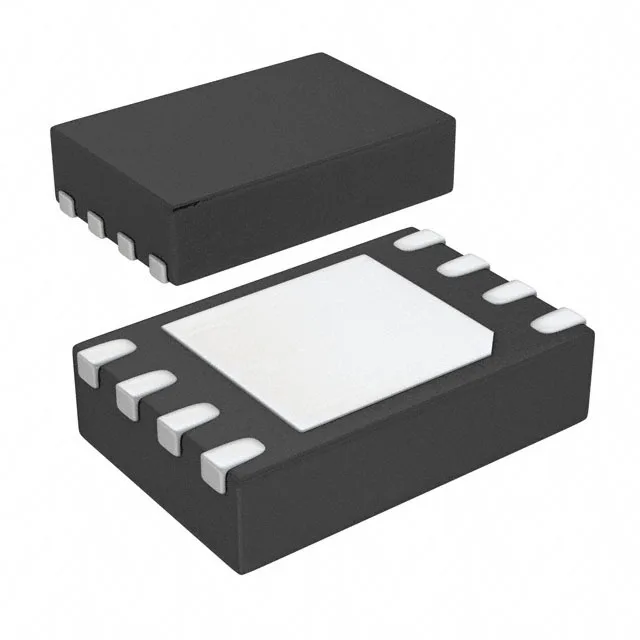

Packaging8-WFDFN Exposed Pad, CSP
RoHSROHS3 Compliant
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Surface Mount |
| Voltage - supply, dual (V±) | ±4.5V ~ 16.5V |
| Voltage - supply, single (V+) | 5V ~ 16.5V |
| Current - leakage (IS(off)) | 400pA |
| Operating temperature | -40°C ~ 125°C (TA) |
| -3db bandwidth | 120MHz |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Case | 8-WFDFN Exposed Pad, CSP |
| Switch circuit | SPST - NC |
| Charge injection | -12pC |
| Number of circuits | 1 |
| On-State resistance | 1.3Ohm |
| Switch time (Ton, toff) | 150ns, 150ns |
| Multiplexer (Demultiplexer circuit) | 1:1 |
| Channel capacitance (CS(off), CD(off)) | 36pF, 41pF |
| Channel-to-Channel matching (ΔRon) | 200mOhm |
