Analog Devices ADA4505-4ACBZ-R7
MPNADA4505-4ACBZ-R7
End of Life
IC CMOS 4 CIRCUIT 14WLCSP
$6.53592Price · pay online now
$6.54 / ea
5 in stock — maximum per order · 3–4 days lead time
Packaging14-UFBGA, WLCSP
RoHSROHS3 Compliant
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Output type | Rail-to-Rail |
| Mounting | Surface Mount |
| Amplifier type | CMOS |
| Voltage - input offset | 500 µV |
| Voltage - supply span | 1.8 V |
| Current - supply | 7µA (x4 Channels) |
| Current - input bias | 0.5 pA |
| Current - output (Channel) | 40 mA |
| Operating temperature | -40°C ~ 125°C |
| Gain bandwidth product | 50 kHz |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Slew rate | 0.006V/µs |

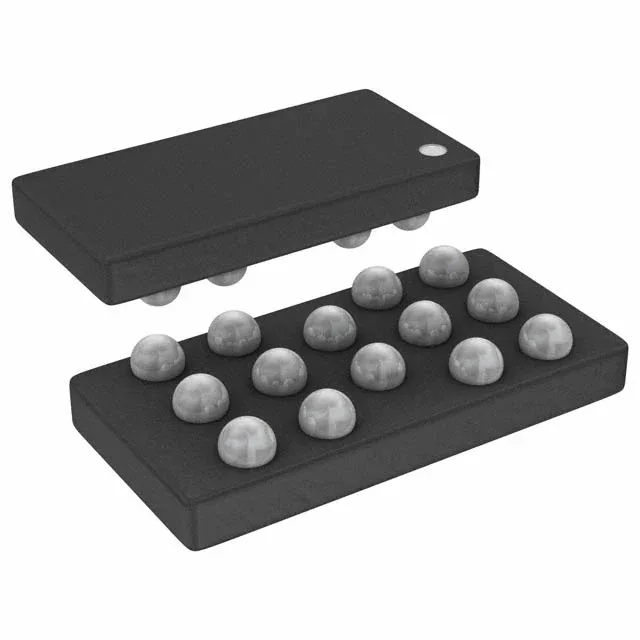

| Case | 14-UFBGA, WLCSP |
| Number of circuits | 4 |
