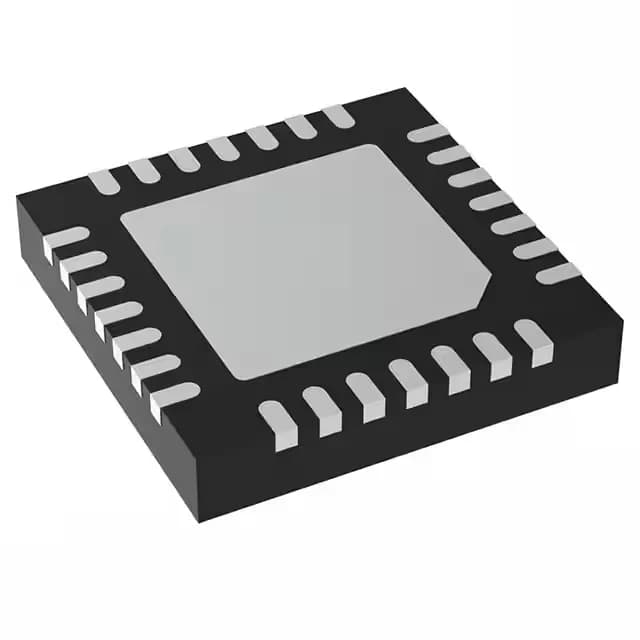

TMC2209-LA-T - Trinamic Motion Control GmbH
MPN TMC2209-LA-T
Active
Spot Stock · 24-48h Dispatch
100% Original Sealed
IC MTR DRV 4.75-28V QFN28
In Stock: 5,714 pcs
MOQ: 1 pcs
Logistics: DHL / FedEx DAP (Global Express · 3-7d)
Russia & CIS DDP (Door-to-Door Cleared)
Dispatch: Shenzhen / HK
Unit Price (USD)
$3.28 / pc
Direct Purchase Ready
Volume Pricing Breaks Confirmed upon quotation
1+ pcs
$3.28
10+ pcs
$2.93
30+ pcs
$2.69
100+ pcs
$2.16
500+ pcs
$2.06
1,000+ pcs
$2.01
Working on a production BOM or have a target unit price? Submit Target Price
[SPEC] Essential Parameters Snapshot Full Specifications (15)
Package / Case 28-VFQFN Exposed Pad
Supply Voltage 4.8V ~ 5.25V
Full Technical Specifications
15 Parameters| Parameter / Attribute | Specification / Value |
|---|---|
| Series | stallGuard™ |
| Mounting | Surface Mount |
| Motor type - stepper | Bipolar |
| Voltage - load | 5.5V ~ 29V |
| Supply voltage | 4.8V ~ 5.25V |
| Output current | 2A |
| Interface | Step/Direction, UART |
| Operating temperature | -40°C~125°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Technology | Power MOSFET |
| Applications | Automation Control |
| Case | 28-VFQFN Exposed Pad |
| Step resolution | 1 ~ 1/256 |
| Output configuration | Step/Direction |
