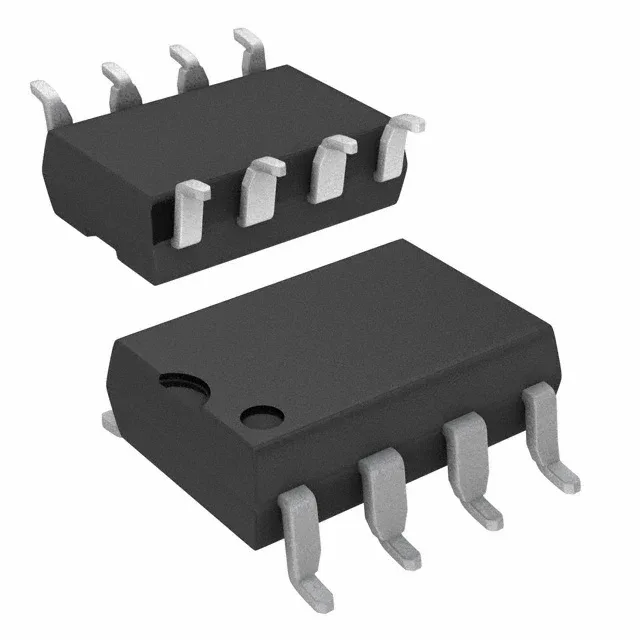

Toshiba Semiconductor TLP7930(D4-TP1,F isolated module, 16-bit resolution, 3V~5.5V supply, single channel, 8-SMD gull wing, -40°C~105°C.
| Parameter | Value |
|---|---|
| Type | Isolated Module |
| Mounting type | Surface Mount |
| Voltage | 3V ~ 5.5V |
| Voltage supply source | Dual Supply |
| Interface | Serial |
| Operating temperature | -40°C ~ 105°C |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Case | 8-SMD, Gull Wing |
| Resolution | 16 b |
| Number of channels | 1 |
The TLP7930(D4-TP1,F is a single-channel isolated module from Toshiba that digitises an analog signal into a 16-bit serial output stream. It sits between a sensor front-end and a microcontroller, providing galvanic isolation across the data path. The 8-SMD gull-wing package (supplier device package 8-SMD) is a surface-mount footprint that suits automated assembly and rework with standard hot-air tools.
Both are single-channel isolated modules with 16-bit resolution, serial interface, surface-mount 8-SMD gull-wing package, and -40°C to 105°C range. The TLP7830(TP4,E is listed as a Modulator type, while the TLP7930(D4-TP1,F is an Isolated Module. The functional difference is in the internal architecture — the TLP7930 integrates the isolation and ADC into a single module, whereas the TLP7830 outputs a modulated bitstream that requires external demodulation. They are not pin-compatible drop-in replacements without a board spin.
