Toshiba Semiconductor TB67S179FTG,EL — Discrete Semiconductors
Toshiba Semiconductor

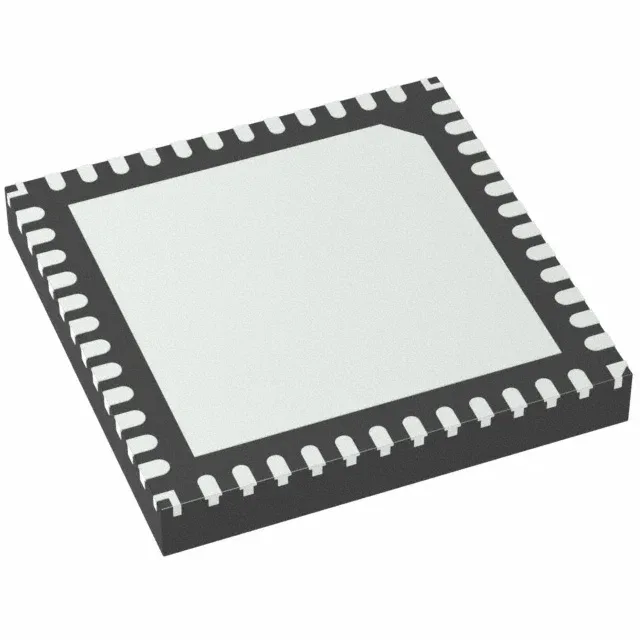

TB67S179FTG,EL Toshiba Stepper Driver, 1.5A, 48-VQFN

MPNTB67S179FTG,EL
End of Life

Toshiba Semiconductor TB67S179FTG,EL stepper motor driver, fully integrated control and power stage, unipolar, 1.5 A output, 10-60 V load, 1/32 microstepping, Parallel interface, 48-VFQFN Exposed Pad, Tape & Reel.

$3.23Ref. price · indicative, final on quote
Packaging48-VFQFN Exposed Pad
StockIn Stock (21)
Lead timeIn Stock wk
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

TB67S179FTG,EL Technical Specifications
ParameterValue
Mounting typeSurface Mount
Motor type - stepperUnipolar
Voltage - load10V ~ 60V
Voltage4.75V ~ 5.25V
Current - output1.5A
InterfaceParallel
Operating temperature-20°C ~ 150°C (TJ)
PackageTape & Reel (TR); Cut Tape (CT)
FunctionDriver - Fully Integrated, Control and Power Stage
TechnologyPower MOSFET
ApplicationsGeneral Purpose
Case48-VFQFN Exposed Pad
Step resolution1 ~ 1/32
Output configurationHalf Bridge (4)

Product details

1.5 A unipolar stepper driver with 1/32 microstepping

The TB67S179FTG,EL is a fully integrated stepper motor driver from Toshiba that packs the control logic and power stage into a single 48-VQFN package. It drives unipolar stepper motors with a continuous output current of 1.5 A and accepts a motor supply voltage from 10 V to 60 V, making it suitable for a range of general-purpose motion-control applications like small CNC stages, 3D printer axes, and automated lab equipment.

Microstepping and output stage

The driver supports step resolutions from full-step down to 1/32 microstepping via a parallel interface, which lets the system designer trade off torque ripple and smoothness against step rate without changing the motor. The half-bridge output configuration (four bridges) drives a single unipolar stepper winding per bridge, and the Power MOSFET technology keeps conduction losses manageable at the 1.5 A continuous rating.

Frequently asked questions

Is the TB67S179FTG,EL a drop-in replacement for the TB67S109AFNG,EL?

No. The TB67S179FTG,EL drives unipolar stepper motors, while the TB67S109AFNG,EL drives bipolar steppers. The output stage topology differs — the TB67S179 uses four half-bridges for unipolar windings, whereas the TB67S109 uses two full H-bridges for bipolar. They are not pin-compatible and require different motor wiring.
