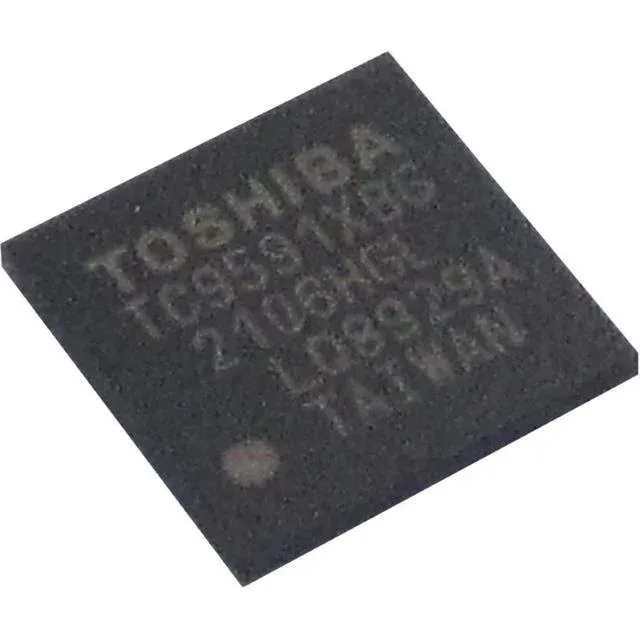

Toshiba Semiconductor TC9591XBG(EL) Automotive Bridge, 80-VFBGA package, Surface Mount, Tape & Reel / Cut Tape.
| Parameter | Value |
|---|---|
| Type | Bridge |
| Mounting type | Surface Mount |
| Grade | Automotive |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Case | 80-VFBGA |
The TC9591XBG(EL): The automotive-grade qualification means the part is intended for environments that see temperature cycling, vibration, and extended operating life. The bridge function implies it routes or conditions a signal path between two domains — verify the pin-to-pin mapping against the application schematic before committing the BOM line.
Both parts share the same automotive series and 80-VFBGA package, suggesting a common footprint. However, the internal bridge function and pinout may differ. Confirm the pin-to-pin mapping from the respective datasheets before substituting — the package alone does not guarantee a drop-in replacement.
