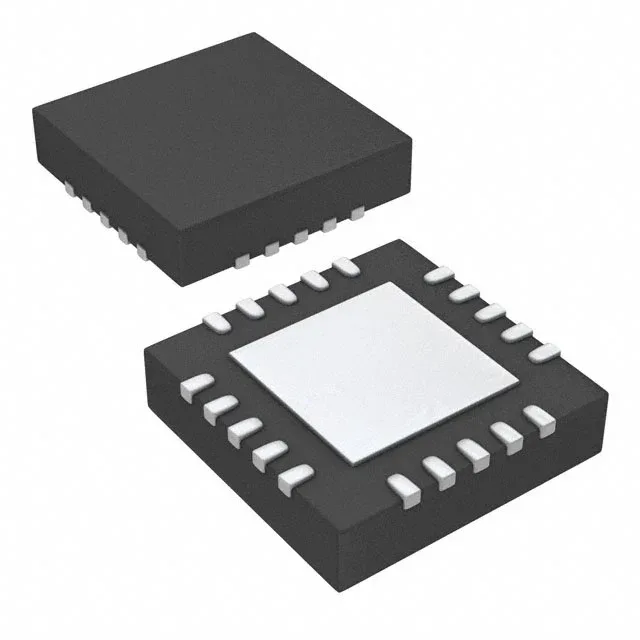

TB62771FTG,8,EL Toshiba LED Driver, 4-Ch, 150mA, 20-WQFN

MPNTB62771FTG,8,EL
End of Life

Toshiba Semiconductor TB62771FTG,8,EL DC DC Regulator LED driver, 4 outputs, 150 mA per channel, 45 V output, PWM dimming, step-up (boost) topology, 20-WQFN package.

$1.52Ref. price · indicative, final on quote
TB62771FTG,8,EL datasheet
Packaging20-WFQFN Exposed Pad
StockIn Stock (19)
Lead timeIn Stock wk
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

TB62771FTG,8,EL Technical Specifications
ParameterValue
TypeDC DC Regulator
Mounting typeSurface Mount
Voltage - output45V
Voltage4.75V
Current - output (Channel)150mA
Frequency200kHz ~ 2MHz
Number of outputs4
Operating temperature-40°C ~ 85°C (TA)
DimmingPWM
PackageTape & Reel (TR); Cut Tape (CT)
TopologyStep-Up (Boost)
ApplicationsBacklight
Case20-WFQFN Exposed Pad
Internal switchYes

Product details

What it is and where it fits

The TB62771FTG,8,EL is a 4-channel DC-DC regulator LED driver in a step-up (boost) topology, designed for backlight applications. Each channel delivers up to 150 mA at a maximum output voltage of 45 V, with PWM dimming control. It operates from a 4.75 V to 40 V supply rail and switches between 200 kHz and 2 MHz, letting you tune the inductor and capacitor size for the board space versus ripple trade-off. The 20-WQFN (4x4 mm) package with exposed pad sinks the heat from the internal switch into the PCB copper pour.
