TCAN1044AEVDRQ1
Texas Instruments
Surface MountTape & Reel (TR) Cut Tape (CT)-40°C ~ 150°C (TA)
Ref. price$1.6000
Lead time on requestGet quote
Texas Instruments TCAN Logic Series
10 variants · Texas Instruments
About the Texas Instruments TCAN Logic Series
The Texas Instruments TCAN Logic Series series groups 10 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common grade of Automotive, number of drivers (Receivers) of 1/1 and package of Tape & Reel (TR) Cut Tape (CT). Variants differ by case, data rate and duplex, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- 8-SOIC (0.154\", 3.90mm Width) · 14-SOIC (0.154\", 3.90mm Width) · 14-VDFN Exposed Pad · SOT-23-14 Thin, SOT-23 Variant
- Data rate
- 2Mbps · 5Mbps · 8Mbps
- Duplex
- - · Half
- Mounting
- Surface Mount · Surface Mount, Wettable Flank
- Operating temperature
- -55°C ~ 125°C · -40°C ~ 150°C (TA) · -40°C ~ 150°C (TJ)
- Receiver hysteresis
- 50 mV · 115 mV · 135 mV
- Voltage
- 4.5V ~ 5.5V · 4.5V ~ 28V
Shared specifications
- Grade
- Automotive
- Number of drivers (Receivers)
- 1/1
- Package
- Tape & Reel (TR) Cut Tape (CT)
- Protocol
- CANbus
- Qualification
- AEC-Q100
- Type
- Transceiver
Variant comparison

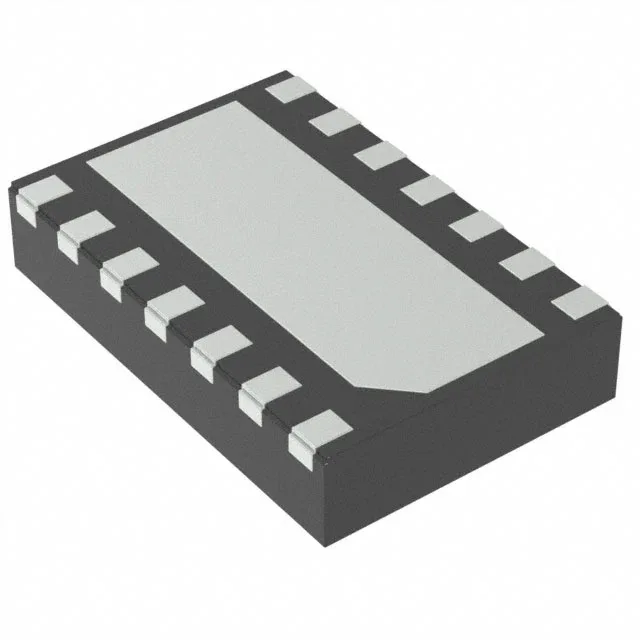

| Parameter | TCAN1043DMTRQ1 | TCAN1044AEVDRQ1 | TCAN1144DRQ1 | TCAN1144DYYRQ1 |
|---|---|---|---|---|
| Case | 14-VDFN Exposed Pad | 8-SOIC (0.154\", 3.90mm Width) | 14-SOIC (0.154\", 3.90mm Width) | SOT-23-14 Thin, SOT-23 Variant |
| Data rate | 2Mbps | 8Mbps | 5Mbps | 5Mbps |
| Duplex | - | Half | Half | Half |
| Mounting | Surface Mount, Wettable Flank | Surface Mount | Surface Mount | Surface Mount |
| Operating temperature | -55°C ~ 125°C | -40°C ~ 150°C (TA) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Receiver hysteresis | 50 mV | 115 mV | 135 mV | 135 mV |
| Voltage | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 28V | 4.5V ~ 28V |
Request a quote on any Texas Instruments TCAN Logic Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
