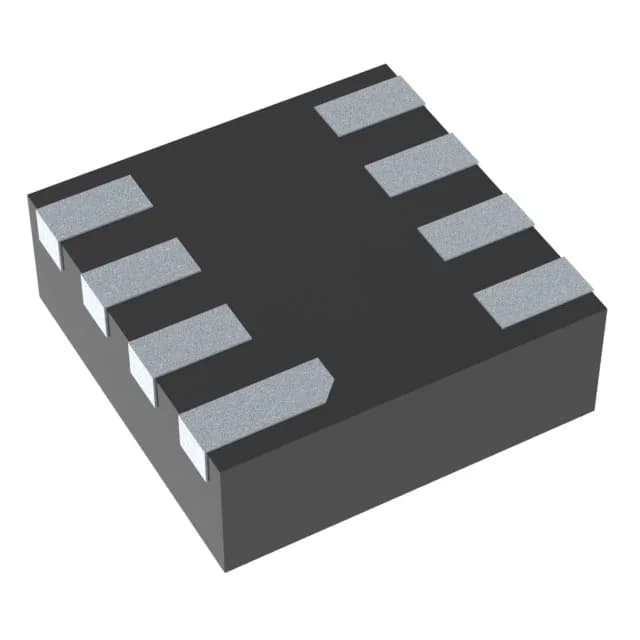

LMK1C1102DQFR
Texas Instruments
-40°C ~ 125°C (TA)250 MHz1:2
Ref. price$1.4400
Lead time on requestGet quote ›
Texas Instruments LMK1 Series
10 variants · Texas Instruments
About the Texas Instruments Texas Instruments LMK1 Series series
The Texas Instruments Texas Instruments LMK1 Series series groups 10 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common package of Tape & Reel (TR) Cut Tape (CT), type of Clock Buffer and voltage of 1.71V ~ 1.89V, 2.375V ~ 2.625V, 3.135V ~ 3.465V. Variants differ by case, differential - Input:Output and frequency, so you can match the exact case your application requires using the selection guide below. All listed Texas Instruments LMK1 Series part numbers are active and orderable.
Select a variant by
- Case
- 8-WFDFN · 16-VFQFN Exposed Pad · 28-VFQFN Exposed Pad · 40-VFQFN Exposed Pad
- Differential - Input:Output
- No/No · Yes/Yes
- Frequency
- 2 GHz · 250 MHz
- Input
- Clock · Clock, LVCMOS · CML, HCSL, LVCMOS, LVDS, LVPECL · HCSL, LVCMOS, LVDS, LVPECL
- Mounting type
- Surface Mount · Surface Mount, Wettable Flank
- Number of circuits
- 1 · 2
- Operating temperature
- -40°C ~ 105°C (TA) · -40°C ~ 125°C (TA)
- Output
- Clock · Clock, LVCMOS · LVDS
Variant comparison

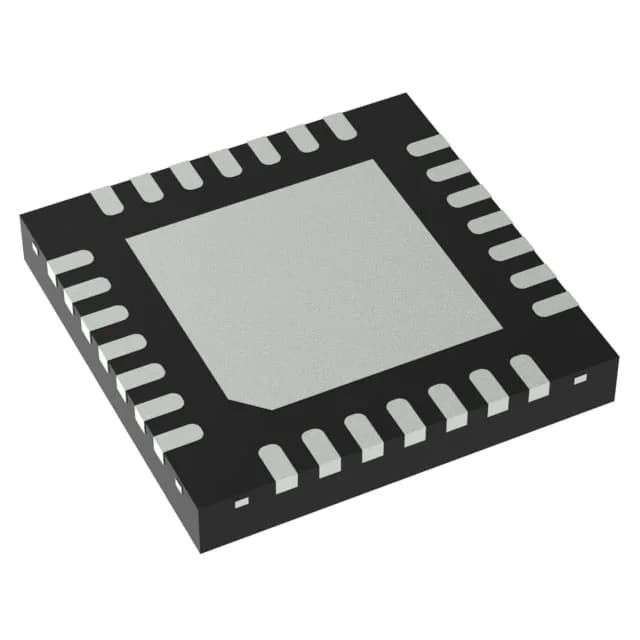

| Parameter | LMK1C1102DQFR | LMK1C1102DQFT | LMK1C1104DQFR | LMK1C1104DQFT | LMK1D1204PRHDR | LMK1D1204PRHDT |
|---|---|---|---|---|---|---|
| Case | 8-WFDFN | 8-WFDFN | 8-WFDFN | 8-WFDFN | 28-VFQFN Exposed Pad | 28-VFQFN Exposed Pad |
| Differential - Input:Output | No/No | No/No | No/No | No/No | Yes/Yes | Yes/Yes |
| Frequency | 250 MHz | 250 MHz | 250 MHz | 250 MHz | 2 GHz | 2 GHz |
| Input | Clock, LVCMOS | Clock, LVCMOS | Clock, LVCMOS | Clock, LVCMOS | Clock | Clock |
| Mounting type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Number of circuits | 1 | 1 | 1 | 1 | 1 | 1 |
| Operating temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) |
| Output | Clock, LVCMOS | Clock, LVCMOS | Clock, LVCMOS | Clock, LVCMOS | Clock | Clock |
Shared specifications
- Package
- Tape & Reel (TR) Cut Tape (CT)
- Type
- Clock Buffer
- Voltage
- 1.71V ~ 1.89V, 2.375V ~ 2.625V, 3.135V ~ 3.465V
Request a quote on any Texas Instruments LMK1 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Texas Instruments Texas Instruments LMK1 Series variants differ?
- Texas Instruments LMK1 Series part numbers differ by case, differential - Input:Output, frequency and input. Use the selection guide above to pick by case.
- How many Texas Instruments Texas Instruments LMK1 Series part numbers are listed?
- 10 Texas Instruments Texas Instruments LMK1 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Texas Instruments Texas Instruments LMK1 Series?
- Request a quote (RFQ) for any Texas Instruments LMK1 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
