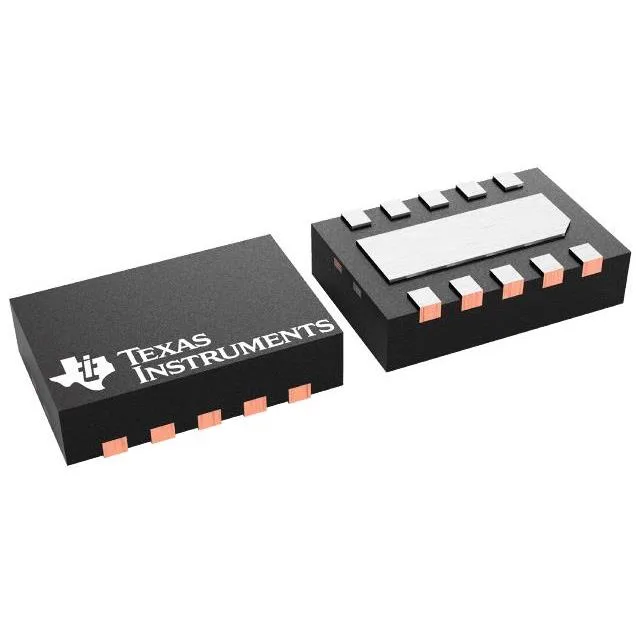

TPS22954QDQCRQ1 - Texas Instruments
MPNTPS22954QDQCRQ1
End of Life
$0.5800Ref. price · indicative, final on quote
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Input type | Non-Inverting |
| Output type | N-Channel |
| Type | General Purpose |
| Mounting | Surface Mount |
| Voltage - load | 0.9V ~ 5.7V |
| Voltage - supply (Vcc (Vdd)) | Not Required |
| Output current | 5A |
| I/O channels | 1 |
| Interface | On/Off |
| Operating temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Features | Slew Rate Controlled |
All specifications
| Parameter | Value |
|---|---|
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Rds on | 14mOhm |
| Qualification | AEC-Q100 |
| Case | 10-WFDFN Exposed Pad |
| Fault protection | Current Limiting (Adjustable), Over Temperature, Reverse Current |
| Output configuration | High Side |
| Ratio - Input:Output | 1:1 |
