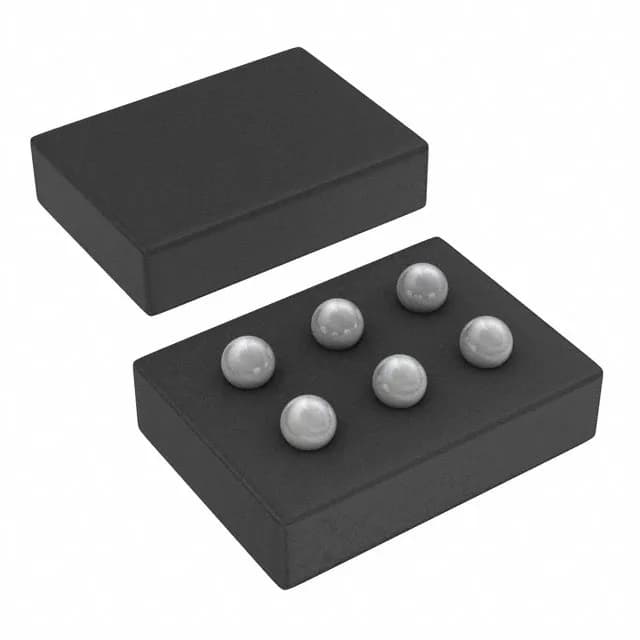

Texas Instruments TPS22925BNYPHT — Power Management (PMIC / Gate Driver)

TPS22925BNYPHT Load Switch – 9.2 mOhm, 3 A, 0.65-3.6 V

MPNTPS22925BNYPHT
Active

Texas Instruments TPS22925BNYPHT, a general-purpose N-channel high-side load switch, 9.2 mOhm typical Rds(on), 3 A continuous output, 0.65 V to 3.6 V load range, reverse-current protection, slew-rate controlled, -40°C to 105°C, 6-DSBGA package, tape & reel.

$1.2400Ref. price · indicative, final on quote
Texas Instruments TPS22925BNYPHT datasheet (PDF)
Packaging6-XFBGA, DSBGA
RoHSROHS3 Compliant
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

TPS22925BNYPHT specifications
ParameterValue
Input typeNon-Inverting
Output typeN-Channel
TypeGeneral Purpose
MountingSurface Mount
Voltage - load0.65V ~ 3.6V
Voltage - supply (Vcc (Vdd))Not Required
Output current3A
I/O channels1
InterfaceOn/Off
Operating temperature-40°C ~ 105°C (TA)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSlew Rate Controlled
Rds on9.2mOhm
Case6-XFBGA, DSBGA
Fault protectionReverse Current
Output configurationHigh Side
Ratio - Input:Output1:1

Product details

9.2 mOhm switch for sub-3.6 V rails

The TPS22925BNYPHT is a single-channel, high-side N-channel load switch from Texas Instruments. It handles a load voltage from 0.65 V up to 3.6 V and delivers up to 3 A continuous current. The typical Rds(on) of 9.2 mOhm keeps conduction loss under 28 mW at full load — no heatsink, no thermal pad worry in the 6-DSBGA package.

Industrial temp range, active production

Product status is Active, ROHS3 compliant. Supplied on tape & reel (7-inch reel, 3000 pieces) and also available in cut tape for prototype builds.

6-DSBGA — what the footprint demands

The 6-DSBGA package (0.5 mm pitch, 0.4 mm ball diameter) requires a 2-layer PCB with micro-vias for fan-out. No supply voltage (Vcc/Vdd) needed — the switch is self-powered from the load rail. The On/Off input is non-inverting; logic high enables the output.

Frequently asked questions

Is TPS22925BNYPHT suitable for a 1.8 V load?

Yes. The load voltage range is 0.65 V to 3.6 V, so a 1.8 V rail sits comfortably in the middle. The 9.2 mOhm Rds(on) is typical at 1.8 V bias — conduction loss at 1 A is under 10 mW.

Does TPS22925BNYPHT require an external supply voltage?

No. The Vcc/Vdd supply is listed as 'Not Required' — the switch is self-biased from the load rail. Only the load input (Vin) and the On/Off control pin are needed.
