Single open-drain buffer for mixed-voltage and wired-OR buses
The open-drain output can sink up to 32 mA, allowing it to drive LEDs, relays, or pull-down loads directly, and supports wired-OR connections for interrupt or status lines.
Package and footprint — 5-X2SON at 0.8 x 0.8 mm

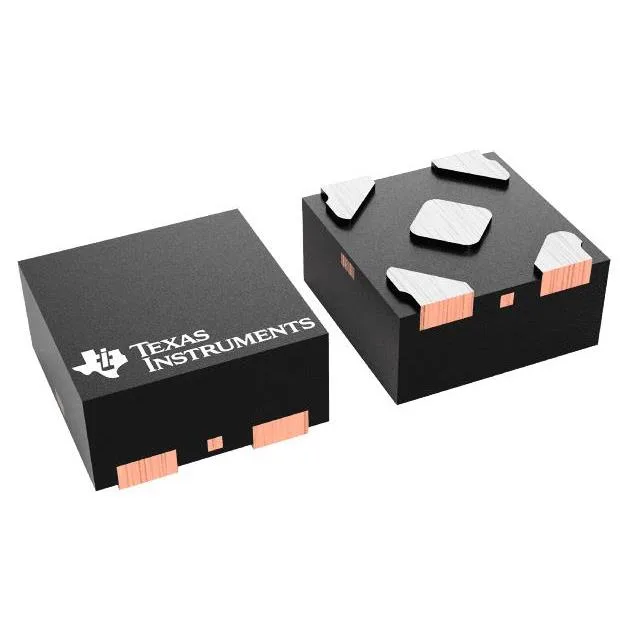

The SN74LVC1G07DPWR is supplied in a 5-X2SON package measuring 0.8 mm by 0.8 mm (supplier device package 5-X2SON). This ultra-small footprint is designed for space-constrained PCBs in wearables, IoT sensor nodes, and portable instruments. The exposed pad on the 4-XFDFN package aids thermal dissipation when the output is sinking continuous current near the 32 mA limit. Surface-mount assembly requires standard reflow profiles for lead-free solder.
