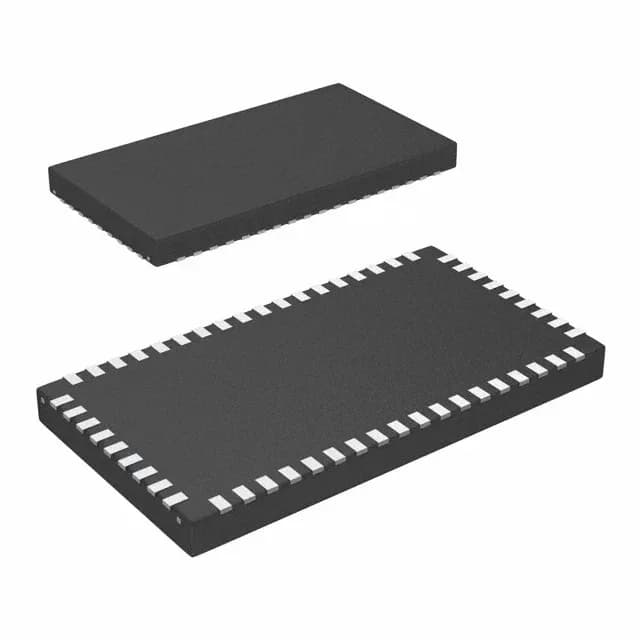

Texas Instruments LMH6522SQE/NOPB — Logic ICs
Texas Instruments

LMH6522SQE/NOPB Variable Gain Amplifier, 54-WQFN, Active

MPNLMH6522SQE/NOPB
End of Life

Texas Instruments LMH6522SQE/NOPB, Variable Gain Amplifier, 54-WFQFN Exposed Pad, 54-WQFN (10x5.5), Surface Mount, Signal Processing, Active, ROHS3 Compliant.

$22.01Ref. price · indicative, final on quote
LMH6522SQE/NOPB datasheet
Packaging54-WFQFN Exposed Pad
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

LMH6522SQE/NOPB Technical Specifications
ParameterValue
TypeVariable Gain Amplifier
Mounting typeSurface Mount
PackageTape & Reel (TR); Cut Tape (CT)
ApplicationsSignal Processing
Case54-WFQFN Exposed Pad

Product details

The Texas Instruments LMH6522SQE/NOPB is a Variable Gain Amplifier (VGA) designed for signal processing applications. It comes in a 54-WFQFN exposed pad package (supplier package 54-WQFN measuring 10x5.5 mm) for surface-mount assembly.

Package considerations for the board

The 54-WFQFN with exposed pad requires a solder-paste stencil aperture that covers at least 50% of the pad area for reliable solder joint formation. The 10x5.5 mm body footprint is compact for a 54-lead VGA, but the fine pitch means the adjacent decoupling capacitors should sit within 2 mm of the supply pins to keep the power rail clean at the amplifier's bandwidth. No pinout detail is reproduced here — the datasheet drawing is the reference for the pad layout.
