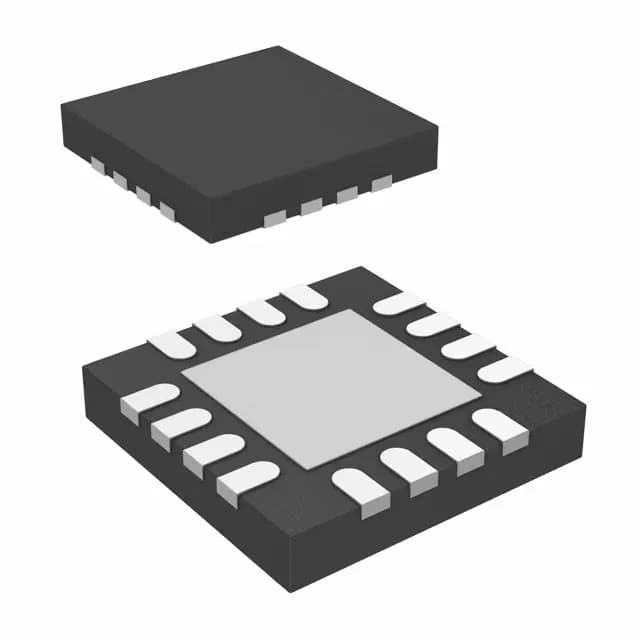

Texas Instruments DRV8833RTYT — Power Management (PMIC / Gate Driver)

DRV8833RTYT – TI Dual Brushed DC Motor Driver, 1.5 A, 16-QFN

MPNDRV8833RTYT
Active

Texas Instruments DRV8833RTYT, Driver - Fully Integrated, Control and Power Stage, NMOS, PWM Interface, 2.7 V ~ 10.8 V Supply, 1.5 A Output, 16-WQFN Exposed Pad, -40°C ~ 150°C TJ

$2.8600Ref. price · indicative, final on quote
Texas Instruments DRV8833RTYT datasheet (PDF)
Packaging16-WQFN Exposed Pad
RoHSROHS3 Compliant
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

DRV8833RTYT specifications
ParameterValue
MountingSurface Mount
Motor type - AC, DCBrushed DC
Motor type - stepperBipolar
Voltage - load2.7V ~ 10.8V
Supply voltage2.7V ~ 10.8V
Output current1.5A
InterfacePWM
Operating temperature-40°C~150°C(TJ)
PackageTape & Reel (TR); Cut Tape (CT)
FunctionDriver - Fully Integrated, Control and Power Stage
TechnologyNMOS
ApplicationsDC Motors, General Purpose, Solenoids
Case16-WQFN Exposed Pad
Output configurationHalf Bridge (4)

Product details

1.5 A per bridge — torque and thermal budget

Each of the four half-bridges is rated for 1.5 A continuous output. That sets the stall torque ceiling for a brushed DC motor or the holding torque for a bipolar stepper.

The 2.7 V to 10.8 V supply range lets the driver run directly from a 3.3 V or 5 V logic rail, or from a 9 V battery without a separate regulator.

Four half-bridges — two brushed DC or one bipolar stepper

With four NMOS half-bridges in a single package, the DRV8833RTYT drives two independent brushed DC motors or one bipolar stepper motor. The integrated control and power stage eliminates external FETs and simplifies the PCB layout for general-purpose and solenoid applications.

Frequently asked questions

Can DRV8833RTYT drive two DC motors at the same time?

Yes. The four half-bridges can be configured as two independent H-bridges, each driving a brushed DC motor. Each bridge is rated for 1.5 A continuous, so both motors can run simultaneously as long as the total current stays within the package thermal limit.

What is the difference between DRV8833RTYT and DRV8833RGYT?

The DRV8833RTYT and DRV8833RGYT share the same die and electrical ratings. The difference is the package tape-and-reel suffix: RTYT is the 16-WQFN in Tape & Reel, while RGYT is the same package in a different reel configuration. Functionally they are identical.
