Taiwan Semiconductor Corporation ES1J Series

4 variants · Taiwan Semiconductor Corporation

About the Taiwan Semiconductor Corporation Taiwan Semiconductor Corporation ES1J Series series

The Taiwan Semiconductor Corporation Taiwan Semiconductor Corporation ES1J Series series groups 4 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common current - average rectified of 1A, mounting type of Surface Mount and reverse recovery time of 35 ns. Variants differ by capacitance @ vr, f, case and current - reverse leakage @ vr, so you can match the exact capacitance @ vr, f your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current Taiwan Semiconductor Corporation ES1J Series variants and discontinued ones from a single page.

Select a variant by

Capacitance @ vr, f: 8pF @ 4V, 1MHz · 15pF @ 4V, 1MHz · 20pF @ 4V, 1MHz
Case: DO-219AB · DO-221AC, SMA Flat Leads · SOD-123F · SOD-123W
Current - reverse leakage @ vr: 1 µA @ 600 V · 5 µA @ 600 V
Operating temperature - junction: -55°C ~ 150°C · -55°C ~ 175°C · -55°C~150°C
Package: Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT)

Variant comparison

Parameter	ES1JAL	ES1JFL	ES1JL	ES1JLW
Capacitance @ vr, f	15pF @ 4V, 1MHz	8pF @ 4V, 1MHz	8pF @ 4V, 1MHz	20pF @ 4V, 1MHz

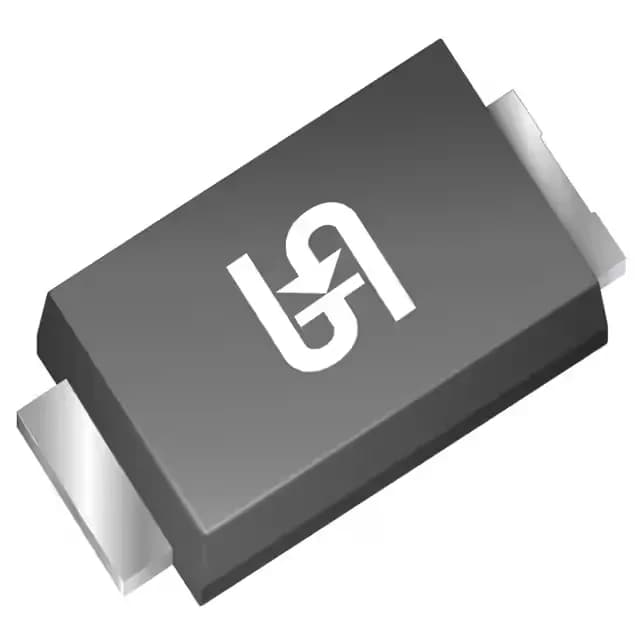

Case	DO-221AC, SMA Flat Leads	SOD-123F	DO-219AB	SOD-123W
Current - reverse leakage @ vr	1 µA @ 600 V	5 µA @ 600 V	5 µA @ 600 V	5 µA @ 600 V
Operating temperature - junction	-55°C~150°C	-55°C ~ 150°C	-55°C ~ 150°C	-55°C ~ 175°C
Package	Tape & Reel (TR); Cut Tape (CT)	Tape & Reel (TR) Cut Tape (CT)	Tape & Reel (TR) Cut Tape (CT)	Tape & Reel (TR) Cut Tape (CT)

Shared specifications

Current - average rectified: 1A
Mounting type: Surface Mount
Reverse recovery time: 35 ns
Speed: Fast Recovery =< 500ns, > 200mA (Io)
Voltage - DC reverse (Vr): 600 V
Voltage - forward (Vf) (Max) @ if: 1.7 V @ 1 A
