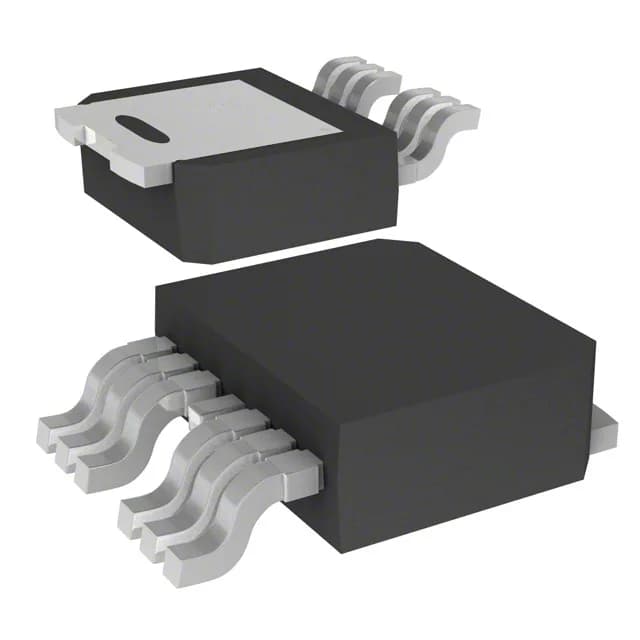

VN5E010MHTR-E
STMicroelectronics
Tape & Reel (TR) Cut Tape (CT)-40°C ~ 150°C (TJ)VIPower™
Ref. price$4.1700
Lead time on requestGet quote ›
STMicroelectronics VN5E Series
6 variants · STMicroelectronics
About the STMicroelectronics STMicroelectronics VN5E Series series
The STMicroelectronics STMicroelectronics VN5E Series series groups 6 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common features of Auto Restart, input type of Non-Inverting and interface of On/Off. Variants differ by case, current - output and fault protection, so you can match the exact case your application requires using the selection guide below. All listed STMicroelectronics VN5E Series part numbers are active and orderable.
Select a variant by
- Case
- 8-SOIC (0.154\", 3.90mm Width) · PowerSSO-12 · TO-252-7, DPak (6 Leads + Tab)
- Current - output
- 7A · 19A · 43A · 60A
- Fault protection
- Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage · Current Limiting (Fixed), Over Temperature, Over Voltage
- Operating temperature
- -40°C ~ 150°C (TJ) · -40°C~150°C(TJ)
- Package
- Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT)
- Rds on
- 10mOhm · 25mOhm (Max) · 50mOhm (Max) · 160mOhm (Max)
Variant comparison

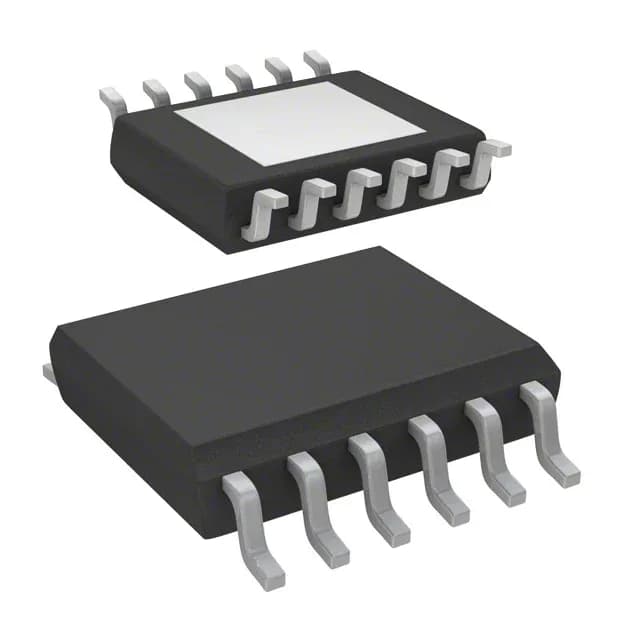

| Parameter | VN5E010MHTR-E | VN5E025AJTR-E | VN5E025MJTR-E | VN5E050AJTR-E | VN5E050MJTR-E | VN5E160STR-E |
|---|---|---|---|---|---|---|
| Case | TO-252-7, DPak (6 Leads + Tab) | PowerSSO-12 | PowerSSO-12 | PowerSSO-12 | PowerSSO-12 | 8-SOIC (0.154\", 3.90mm Width) |
| Current - output | 60A | 43A | 43A | 19A | 19A | 7A |
| Fault protection | Current Limiting (Fixed), Over Temperature, Over Voltage | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | Current Limiting (Fixed), Over Temperature, Over Voltage | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | Current Limiting (Fixed), Over Temperature, Over Voltage | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
| Operating temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C~150°C(TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) |
| Rds on | 10mOhm | 25mOhm (Max) | 25mOhm (Max) | 50mOhm (Max) | 50mOhm (Max) | 160mOhm (Max) |
Shared specifications
- Features
- Auto Restart
- Input type
- Non-Inverting
- Interface
- On/Off
- Mounting type
- Surface Mount
- Number of outputs
- 1
- Output configuration
- High Side
- Output type
- N-Channel
- Ratio - Input:Output
- 1:1
- Switch type
- General Purpose
- Voltage - load
- 4.5V ~ 28V
- Voltage - supply (Vcc (Vdd))
- Not Required
Request a quote on any STMicroelectronics VN5E Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the STMicroelectronics STMicroelectronics VN5E Series variants differ?
- STMicroelectronics VN5E Series part numbers differ by case, current - output, fault protection and operating temperature. Use the selection guide above to pick by case.
- How many STMicroelectronics STMicroelectronics VN5E Series part numbers are listed?
- 6 STMicroelectronics STMicroelectronics VN5E Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for STMicroelectronics STMicroelectronics VN5E Series?
- Request a quote (RFQ) for any STMicroelectronics VN5E Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
