STMicroelectronics STG3820BJR
MPNSTG3820BJR
End of Life
IC SW DPDTX4 5.8OHM FLIPCHIP 30
$2.29932Price · pay online now

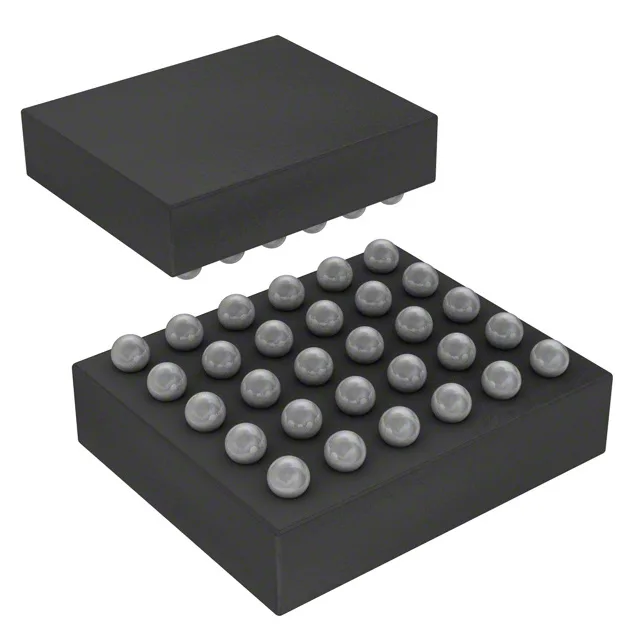

Packaging30-WFBGA, FCBGA
RoHSROHS3 Compliant
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Surface Mount |
| Voltage - supply, single (V+) | 1.65V ~ 4.3V |
| Current - leakage (IS(off)) | 20nA |
| Operating temperature | -40°C ~ 85°C (TA) |
| -3db bandwidth | 800MHz |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Crosstalk | -78dB @ 1MHz |
| Case | 30-WFBGA, FCBGA |
| Switch circuit | DPDT |
| Charge injection | 6.4pC |
| Number of circuits | 4 |
| On-State resistance | 5.8Ohm |
| Switch time (Ton, toff) | 15ns, 13ns |
| Multiplexer (Demultiplexer circuit) | 2:2 |
| Channel-to-Channel matching (ΔRon) | 300mOhm |
| Channel capacitance (CS(off), CD(off)) | 2pF |
