STMicroelectronics SCTH100N65G2-7AG
MPNSCTH100N65G2-7AG
End of Life

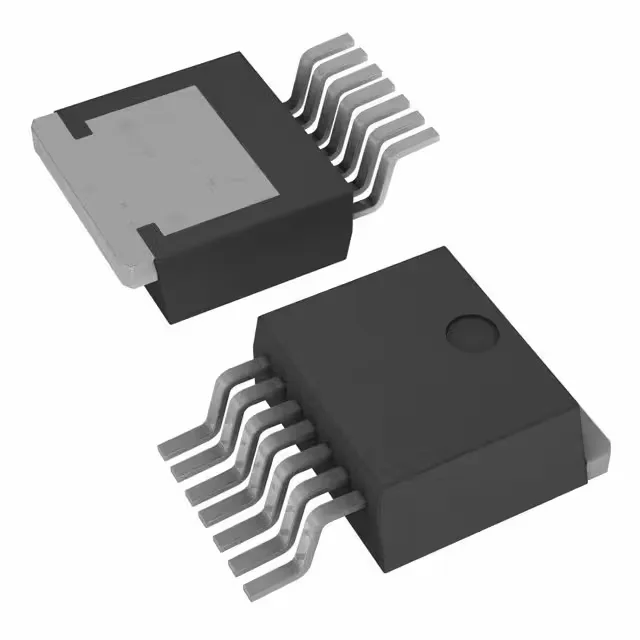

SICFET N-CH 650V 95A H2PAK-7
$55.51884Price · pay online now
$55.52 / ea
1 in stock — maximum per order · 3–4 days lead time
PackagingTO-263-8, D²Pak (7 Leads + Tab), TO-263CA
SeriesAutomotive, AEC-Q101
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Automotive, AEC-Q101 |
| FET type | N-Channel |
| Mounting | Surface Mount |
| Drain to source voltage | 650 V |
| Drive voltage (Max rds on, min rds on) | 18V |
| Current - continuous drain (Id) @ 25°C | 95A (Tc) |
| Power dissipation | 360W (Tc) |
| Operating temperature | -55°C ~ 175°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Vgs | +22V, -10V |
| Technology | SiCFET (Silicon Carbide) |
| Case | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA |
| Vgs(th) (Max) @ id | 5V @ 5mA |
| Rds on (Max) @ id, vgs | 26mOhm @ 50A, 18V |
| Gate charge (Qg) (Max) @ vgs | 162 nC @ 18 V |
| Input capacitance (Ciss) (Max) @ vds | 3315 pF @ 520 V |
