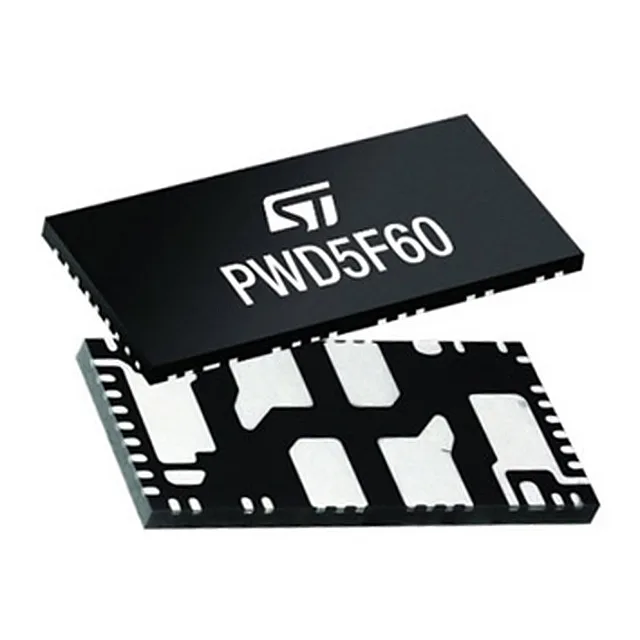

STMicroelectronics PWD5F60TR
MPNPWD5F60TR
End of Life
IC HALF BRIDGE DRV 3.5A 46VFQFPN
$9.85260Price · pay online now
Packaging46-PowerVQFN
RoHSROHS3 Compliant
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Load type | Inductive |
| Mounting | Surface Mount |
| Supply voltage | 10V ~ 20V |
| Current - peak output | 14A |
| Current - output (Channel) | 3.5A |
| Interface | Logic |
| Operating temperature | -40°C ~ 125°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Technology | Power MOSFET |
| Applications | Industrial |
| Rds on | 1.38Ohm |
| Case | 46-PowerVQFN |
| Fault protection | UVLO |
| Output configuration | Half Bridge (2) |
