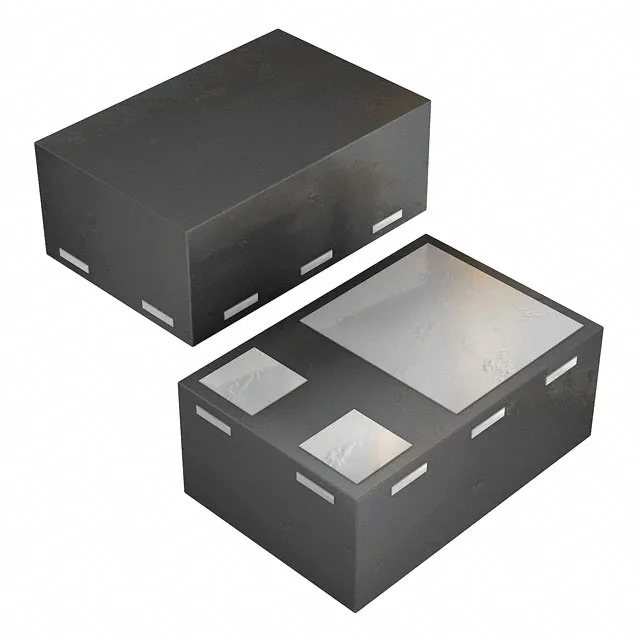

ROHM Semiconductor RV1C001ZPT2L
MPNRV1C001ZPT2L
End of Life
MOSFET P-CH 20V 100MA VML0806
$0.4Ref. price · indicative, final on quote
Packaging3-SMD, No Lead
RoHSROHS3 Compliant
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| FET type | P-Channel |
| Mounting | Surface Mount |
| Drain to source voltage | 20 V |
| Drive voltage (Max rds on, min rds on) | 1.2V, 4.5V |
| Current - continuous drain (Id) @ 25°C | 100mA (Ta) |
| Power dissipation | 100mW (Ta) |
| Operating temperature | 150°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Vgs | ±10V |
| Technology | MOSFET (Metal Oxide) |
| Case | 3-SMD, No Lead |
| Vgs(th) (Max) @ id | 1V @ 100µA |
| Rds on (Max) @ id, vgs | 3.8Ohm @ 100mA, 4.5V |
| Input capacitance (Ciss) (Max) @ vds | 15 pF @ 10 V |
