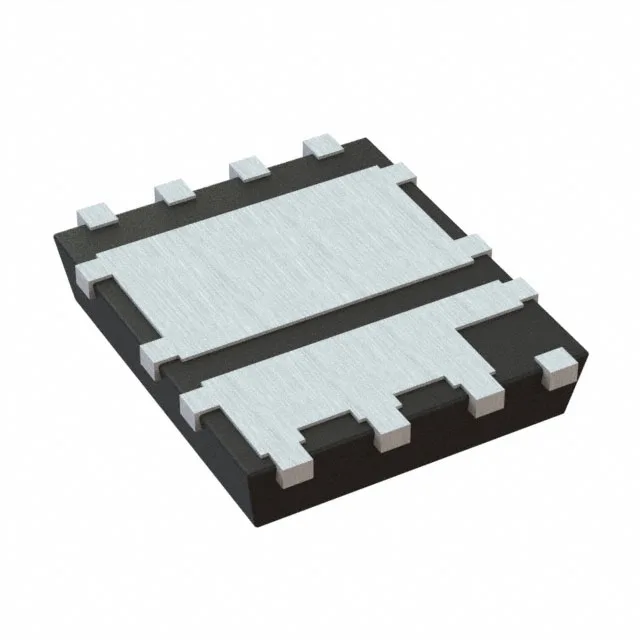

HP8K22TB - ROHM Semiconductor
MPNHP8K22TB
End of Life
30V NCH+NCH MID POWER MOSFET
$1.36Ref. price · indicative, final on quote
Packaging8-PowerTDFN
RoHSROHS3 Compliant
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| FET type | 2 N-Channel (Half Bridge) |
| Mounting | Surface Mount |
| Drain to source voltage | 30V |
| Current - continuous drain (Id) @ 25°C | 27A, 57A |
| Power - max | 25W |
| Operating temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Case | 8-PowerTDFN |
| Vgs(th) (Max) @ id | 2.5V @ 1mA |
| Rds on (Max) @ id, vgs | 4.6mOhm @ 20A, 10V |
| Gate charge (Qg) (Max) @ vgs | 16.8nC @ 10V |
| Input capacitance (Ciss) (Max) @ vds | 1080pF @ 15V |
