What the 2.4 A output and 19-28 V rail mean for your motor

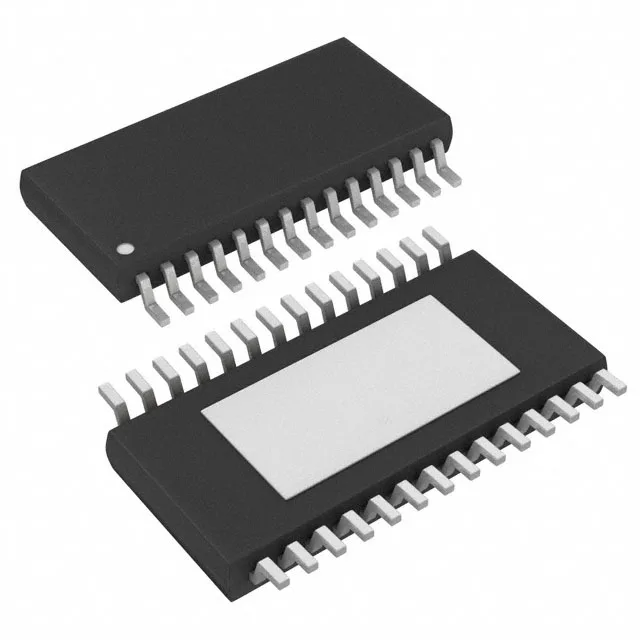

The BD63725BEFV-E2: The 2.4 A continuous output per phase drives a bipolar stepper motor up to that current — the DMOS half-bridge outputs (four half-bridges total) handle the winding current with low on-resistance, so the power dissipation stays inside the 28-VSSOP exposed-pad package. The load and supply voltage share the same 19 V to 28 V range — the motor supply rail and the chip's own VBB pin come from the same source, simplifying the power architecture to a single regulated 24 V nominal rail.
Package and thermal integration
Tape-and-reel or cut-tape packaging — the reel quantity is standard for this package footprint, so the pick-and-place feeder setup is straightforward.
Interface and step resolution
The parallel interface accepts step and direction signals from a host MCU — no SPI or I²C overhead, so the step rate is limited only by the MCU's GPIO toggle speed and the driver's internal logic. Step resolution options are full-step, half-step, and quarter-step (1/4 microstepping) — the resolution is selected by the logic inputs, not programmed, so the driver is a drop-in for designs that do not need a serial bus.
Temperature grade and environment
Rated for -25 °C to +85 °C ambient — this is the industrial temperature band, covering most factory-floor and office-environment applications without the cost of an automotive-grade part. ROHS3 compliant — no RoHS exemption declarations needed for EU or UKCA market entry.
