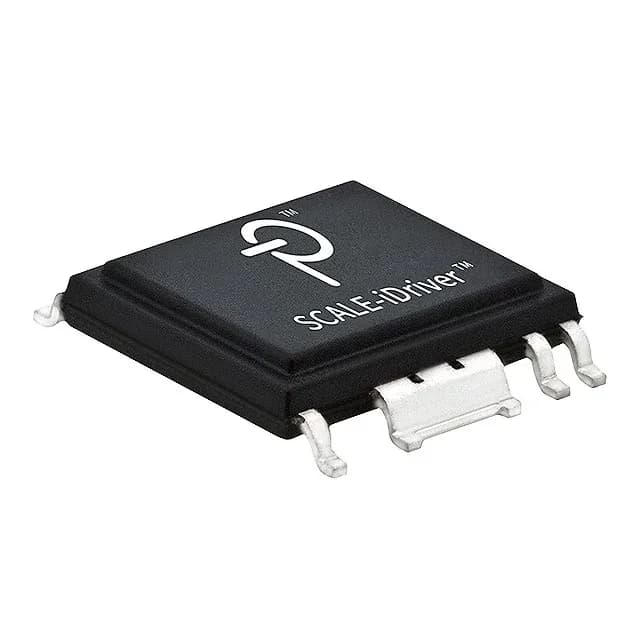

Power Integrations SID1112K-TL
MPN SID1112K-TL
Active
Spot Stock · 24-48h Dispatch
100% Original Sealed
DGT ISO 5KV 1CH GT DVR ESOP-R16B
In Stock: 990 pcs
MOQ: 1 pcs
Logistics: DHL / FedEx DAP (Global Express · 3-7d)
Russia & CIS DDP (Door-to-Door Cleared)
Dispatch: Shenzhen / HK
Unit Price (USD)
$4.19 / pc
Direct Purchase Ready
Volume Pricing Breaks Confirmed upon quotation
1+ pcs
$4.19
10+ pcs
$3.77
30+ pcs
$3.44
100+ pcs
$3.10
500+ pcs
$2.89
Working on a production BOM or have a target unit price? Submit Target Price
[SPEC] Essential Parameters Snapshot Full Specifications (15)
Package / Case 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Output / Current 480mA, 520mA
Full Technical Specifications
15 Parameters| Parameter / Attribute | Specification / Value |
|---|---|
| Series | SCALE-iDriver™ |
| Mounting | Surface Mount |
| Voltage - isolation | 5000Vrms |
| Voltage - output supply | 22V ~ 28V |
| Current - peak output | 1A |
| Current - output high, low | 480mA, 520mA |
| Operating temperature | -40°C ~ 125°C |
| Approval agency | VDE |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Technology | Magnetic Coupling |
| Case | 16-PowerSOIC (0.350\", 8.89mm Width), 15 Leads |
| Channels | 1 |
| Rise (Fall time) | 1125ns, 1125ns (Max) |
| Propagation delay tpLH (tpHL) | 340ns, 330ns |
| Common mode transient immunity | 50kV/µs (Typ) |
