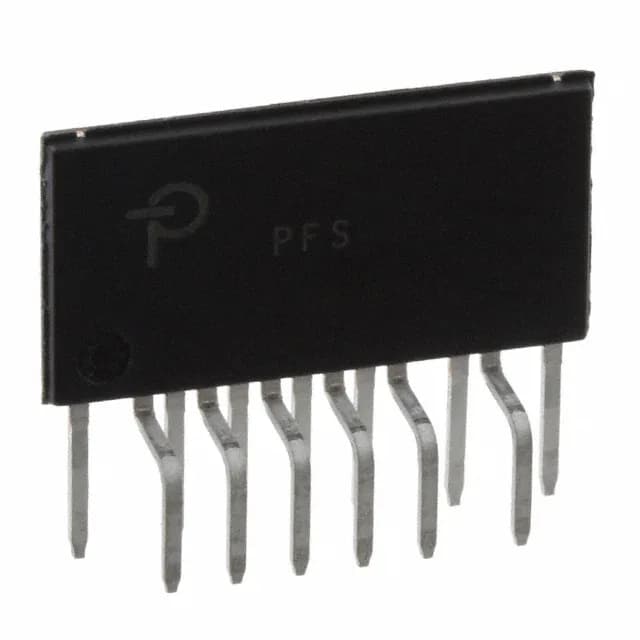

Power Integrations PFS7724H
MPN PFS7724H
Active
Spot Stock · 24-48h Dispatch
100% Original Sealed
PFC CONTROLLER WITH INTEGRATED 6
In Stock: 300 pcs
MOQ: 1 pcs
Logistics: DHL / FedEx DAP (Global Express · 3-7d)
Russia & CIS DDP (Door-to-Door Cleared)
Dispatch: Shenzhen / HK
Unit Price (USD)
$2.90 / pc
Direct Purchase Ready
Volume Pricing Breaks Confirmed upon quotation
1+ pcs
$2.90
10+ pcs
$2.61
30+ pcs
$2.38
100+ pcs
$2.15
Working on a production BOM or have a target unit price? Submit Target Price
[SPEC] Essential Parameters Snapshot Full Specifications (8)
Package / Case 16-SSIP, 13 Leads, Exposed Pad, Formed Leads
Supply Voltage 10.2V ~ 15V
Full Technical Specifications
8 Parameters| Parameter / Attribute | Specification / Value |
|---|---|
| Series | HiperPFS™-4 |
| Mounting | Through Hole |
| Supply voltage | 10.2V ~ 15V |
| Frequency - switching | 22kHz ~ 123kHz |
| Operating temperature | -40°C ~ 150°C (TJ) |
| Mode | Continuous Conduction (CCM) |
| Package | Tube |
| Case | 16-SSIP, 13 Leads, Exposed Pad, Formed Leads |
