Omron EE-SX954-W 1M — Interface & Transceivers
Omron

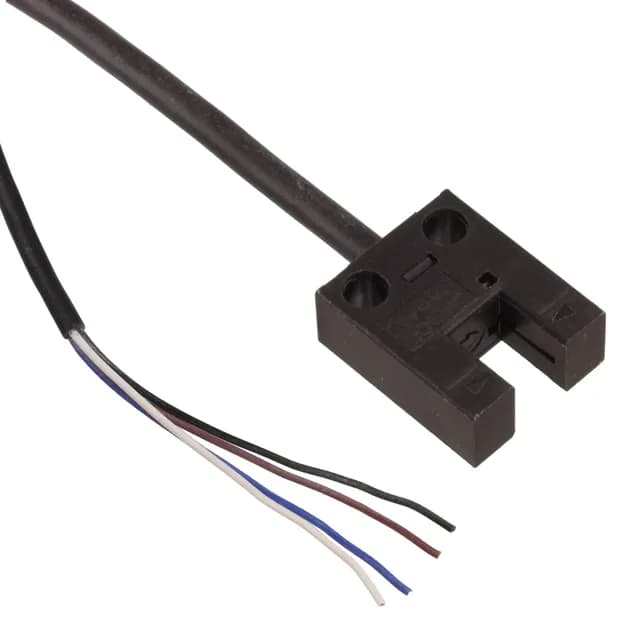

Omron EE-SX954-W 1M Through-Beam Sensor, NPN Selectable, 0.197 mm

MPNEE-SX954-W 1M
Active

Omron EE-SX954-W 1M, series EE-SX95, amplified through-beam photoelectric sensor, NPN Dark-ON/Light-ON selectable output, 24 VDC supply, 0.197 mm sensing distance, chassis mount, bulk package, -25°C to 55°C operating range.

$22.43Ref. price · indicative, final on quote
EE-SX954-W 1M datasheet
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

EE-SX954-W 1M Technical Specifications
ParameterValue
SeriesEE-SX95
Mounting_typeChassis Mount
Operating temperature high-25°C to 55°C
Output_typeNPN - Dark-ON/Light-ON - Selectable
Package_typeBulk
Product_typeAmplified
Sensing_typeThrough-Beam
Product_statusActive
Supply_voltage_v24.0
Switching_current_a0.05
Sensing_distance_max_mm0.197

Product details

Amplified through-beam sensor with selectable NPN output

The Omron EE-SX954-W 1M is an amplified through-beam photoelectric sensor in the EE-SX95 series. It detects an object breaking a light path between the emitter and receiver, with a narrow 0.197 mm sensing gap suited for edge detection, registration mark sensing, and thin-profile object presence. The NPN output is selectable between Dark-ON and Light-ON logic via a wiring option, so a single sensor covers both normally-open and normally-closed PLC input requirements without an external inverter.

Temperature range and mounting

Operating temperature covers -25°C to 55°C, which is typical for indoor factory automation, packaging lines, and warehouse conveyor systems. Outside that band — near an oven line or in a refrigerated cold dock — you'd need a sensor with a wider industrial range. Chassis-mount form factor with a 1-meter cable (the "1M" suffix) simplifies panel or machine-frame installation; no DIN-rail adapter required.

Frequently asked questions

What is the output type of EE-SX954-W 1M?

NPN output with Dark-ON/Light-ON selectable logic. You choose the sense polarity by wiring the output load to the normally-open or normally-closed terminal — no external inverter needed.

Does EE-SX954-W 1M require an external amplifier?

No. This is an amplified sensor — the photodiode signal is conditioned and thresholded inside the housing. Wire it as a standard three-wire DC sensor (brown +24 V, blue 0 V, black output) and it drives a PLC input or relay directly.

What is the sensing distance of EE-SX954-W 1M?

The physical sensing gap is 0.197 mm. That slot width determines the maximum target thickness that can pass through without contacting the emitter or receiver faces.
