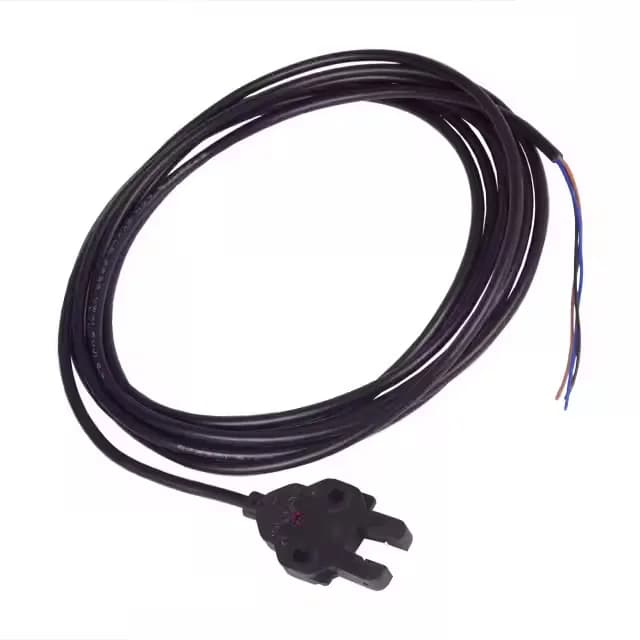

Omron EE-SX770 Through-Beam Optical Sensor, 5 mm, NPN Dark-ON

MPN EE-SX770
Active Spot Stock · 24-48h Dispatch 100% Original Sealed

Omron EE-SX770, Through-Beam Optical Sensor, 5 mm sensing distance, NPN Open Collector/Dark-ON output, 5 V supply, -25°C to 55°C, Chassis Mount with M3 screw, Tray package.

Factory Allocation · Direct Sourcing
MOQ: 1 pcs
Logistics: DHL / FedEx DAP (Global Express · 3-7d) Russia & CIS DDP (Door-to-Door Cleared)
Dispatch: Shenzhen / HK
Wholesale Ref. Price (USD)
Target Price / Quote (2h Fast Turnaround)
Formal B2B Quotation in 2h
Volume pricing applies from 1,000 pcs upward, and is confirmed per order against the quantity and the shipment date. Inquire for Target Qty →
Working on a production BOM or have a target unit price? Submit Target Price
Upload Full BOM List
100% Original Sealed 45x Microscope QC 30-Day Warranty · COC USD T/T & PI · DAP/DDP
[SPEC] Essential Parameters Snapshot Full Specifications (9)
Supply Voltage 5.0

Full Technical Specifications

9 Parameters
EE-SX770 specifications
Parameter / AttributeSpecification / Value
MountingChassis Mount, M3 Screw
Operating temperature high-25°C to 55°C (TA)
Output signalNPN - Open Collector/Dark-ON
Package_typeTray
Sensing_typeThrough-Beam
StatusActive
Supply voltage5.0
Switching current0.035
Sensing distance max0.197
[DESK] Shenzhen Spot Allocation · 2h Response

Need Immediate Spot Stock or Shortage Allocation for EE-SX770?

Factory lead times blocking production? We lock verified brand-new original stock in Shenzhen within 2 hours.

Quote SLA 2 Hours
[01] Emergency Shortage 24-48h Shenzhen Dispatch

Direct access to Shenzhen floor inventory, franchised allocation buffers, and factory bonded stock to resolve line-down shutdowns.

[02] Industrial Packaging Tape & Reel / Tray / Tube

Standard factory-sealed packaging compliant with EIA-481 standards for automated high-speed SMT pick-and-place lines.

[03] WhatsApp QC Proof 45x Microscope QC Photos

High-resolution photos of original reel labels, 2D DataMatrix, and pin coplanarity sent via WhatsApp/Telegram before you release wire payment.

● USD Wire Transfer (SWIFT T/T) · DAP Express / DDP Delivery
WhatsApp Inquiry Request Spot Quote

Technical Details & Description

Dark-on means the NPN transistor pulls the output low (sinks current) when the light beam is blocked. With the beam uninterrupted, the output is off (high-impedance). This is standard for fail-safe detection: a broken wire or lost power leaves the output off, which a PLC can interpret as a blocked condition.

Temperature range — indoor automation, not the oven

Rated for -25°C to 55°C ambient. This covers most factory-floor and warehouse environments but does not extend to hot machine enclosures, paint booths, or freezer applications. If the sensor sits near a motor housing or oven wall, check the local ambient temperature at the mounting point — not the room average.

For a BOM freeze or long-term supply plan, this part is currently stable; no need to chase an alternate yet.

Frequently asked questions

What is the EE-SX770 datasheet?

The Omron EE-SX770 datasheet covers the through-beam slot sensor with 5 mm sensing distance, NPN open-collector dark-on output, 5 V supply, and -25°C to 55°C operating temperature. It is available from Omron's documentation portal or through component distributors.

What is the EE-SX770 equivalent?

A close functional peer is the Omron EE-SPX305-W2A, which also uses NPN open-collector dark-on output and a through-beam slot. The EE-SPX305-W2A has a wire-lead mounting instead of M3 screw and a narrower temperature range of -10°C to 55°C. Verify the mounting and temperature requirements before substituting.

What does dark-on mean for EE-SX770?

Dark-on means the NPN output transistor turns on (sinks current to ground) when the light beam is blocked. When the beam is clear, the output is off. This is a fail-safe logic: a blocked beam equals an active output, so a wiring fault or power loss defaults to the blocked state.

How to connect EE-SX770 to a PLC?

Wire the output to a PLC sinking (NPN) digital input. With a 5 V supply, the open-collector output pulls down when the beam is blocked. Use a pull-up resistor on the PLC input if the module expects a voltage signal; otherwise, the NPN transistor sinks the input current directly. The 35 mA switching current is sufficient for most PLC input cards.
