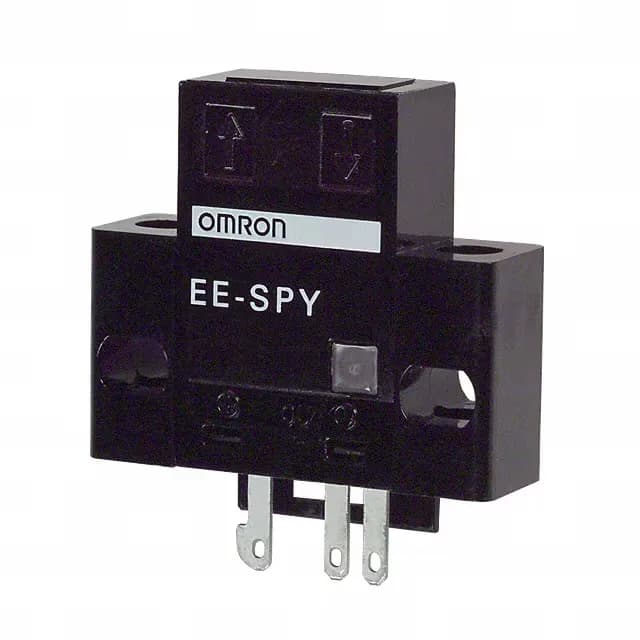

Omron EE-SPY312 reflective convergent photoelectric sensor, NPN open collector Dark-ON output, infrared LED, 5 V supply, 2 mm to 5 mm sensing distance on white paper, solder-mount module.
| Parameter | Value |
|---|---|
| Mounting | Solder |
| Output signal | NPN - Open Collector/Dark-ON |
| Feature_list | Reduced External Light Interference |
| Package_type | Bulk |
| Sensing_type | Reflective, Convergent |
| Sensing light | Infrared |
| Status | Active |
| Sensing_object | White Paper |
| Supply voltage | 5.0 |
| Switching current | 0.015 |
| Sensing distance max | 0.079 |
NPN open collector, Dark-ON means the output transistor turns on (pulls low) when the reflected beam is blocked. Wire the collector to the PLC input with a pull-up resistor to 5 V; the emitter goes to ground. Solder-mount package — no connector, so plan for a small PCB or terminal block on the bracket.
Active lifecycle — no end-of-life notice on this line. Still a standard catalog item, so no last-time-buy scramble.
NPN open collector, Dark-ON — the output pulls low when the beam is blocked.
2 mm to 5 mm on a white paper target.
5 V DC.
