NXP Semiconductors MCIM Microcontrollers Series

5 variants · NXP SemiconductorsAll Microcontrollers & Processors (MCU / MPU / DSP) →

About the NXP Semiconductors MCIM Microcontrollers Series

The NXP Semiconductors MCIM Microcontrollers Series series groups 5 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common ethernet of 10/100Mbps (1), mounting of Surface Mount and number of cores (Bus width) of 1 Core, 32-Bit. Variants differ by additional interfaces, case and core processor, so you can match the exact additional interfaces your application requires using the selection guide below. All listed NXP Semiconductors MCIM Microcontrollers Series part numbers are active and orderable.

Select a variant by

Additional interfaces: 1-Wire, AC'97, I2C, I2S, MMC/SD, SPI, SSI, UART · 1-Wire, AC'97, I²C, I²S, MMC/SD, SPI, SSI, UART · I²C, I²S, MMC/SD/SDIO, SPI, SSI, SSP, UART
Case: 400-LFBGA · 416-LFBGA · 529-LFBGA
Core processor: ARM® Cortex®-A8 · ARM926EJ-S
Display & interface controllers: Keypad · Keypad, LCD · LCD
Graphics acceleration: No · Yes
Operating temperature: -20°C ~ 70°C (TA) · -20°C ~ 85°C (TC) · 0°C ~ 70°C (TA)
Package: Bulk · Tray
RAM controllers: LPDDR, DDR, DDR2 · LPDDR, DDR2 · LPDDR, LPDDR2, DDR2

Shared specifications

Ethernet: 10/100Mbps (1)
Mounting: Surface Mount
Number of cores (Bus width): 1 Core, 32-Bit

Variant comparison

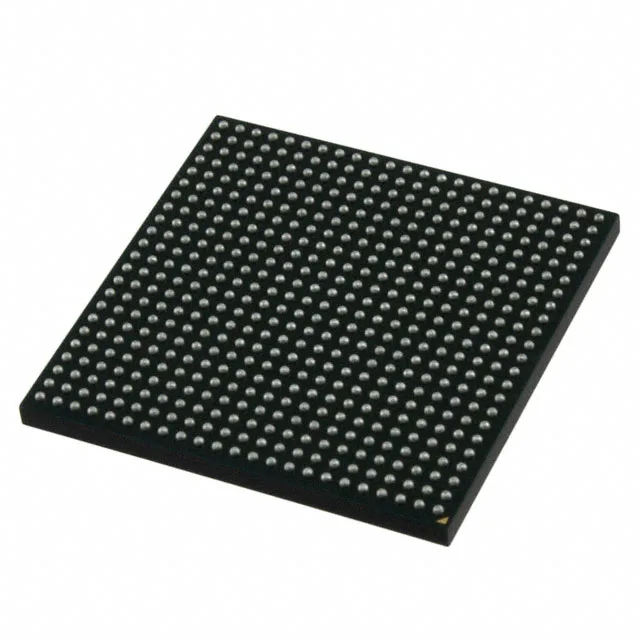

Parameter	MCIMX502CVM8B	MCIMX507CVK8BR2	MCIMX253DJM4A	MCIMX507CVM8B	MCIMX512DJM8C
Additional interfaces	1-Wire, AC'97, I²C, I²S, MMC/SD, SPI, SSI, UART	1-Wire, AC'97, I²C, I²S, MMC/SD, SPI, SSI, UART	I²C, I²S, MMC/SD/SDIO, SPI, SSI, SSP, UART	1-Wire, AC'97, I2C, I2S, MMC/SD, SPI, SSI, UART	1-Wire, AC'97, I²C, I²S, MMC/SD, SPI, SSI, UART
Case	400-LFBGA	416-LFBGA	400-LFBGA	400-LFBGA	529-LFBGA
Core processor	ARM® Cortex®-A8	ARM® Cortex®-A8	ARM926EJ-S	ARM® Cortex®-A8	ARM® Cortex®-A8
Display & interface controllers	LCD	LCD	Keypad	LCD	Keypad, LCD
Graphics acceleration	Yes	Yes	No	Yes	No
Operating temperature	0°C ~ 70°C (TA)	0°C ~ 70°C (TA)	-20°C ~ 70°C (TA)	0°C ~ 70°C (TA)	-20°C ~ 85°C (TC)
Package	Tray	Bulk	Tray	Tray	Tray
RAM controllers	LPDDR, LPDDR2, DDR2	LPDDR, LPDDR2, DDR2	LPDDR, DDR, DDR2	LPDDR, LPDDR2, DDR2	LPDDR, DDR2

Request a quote on any NXP Semiconductors MCIM Microcontrollers Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
