NXP Semiconductors SJA1105PELY — Discrete Semiconductors
NXP Semiconductors

SJA1105PELY Automotive Ethernet Switch, SPI, AEC-Q100

MPNSJA1105PELY
End of Life

NXP SJA1105PELY automotive Ethernet switch, SPI interface, IEEE 802.3, AEC-Q100 qualified, -40°C to 125°C operating range, 1.65V to 3.6V supply, 3.5mA supply current, 159-LFBGA (12x12) package.

$9.73Ref. price · indicative, final on quote
SJA1105PELY datasheet
Packaging159-LFBGA
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

SJA1105PELY Technical Specifications
ParameterValue
Voltage1.65V ~ 3.6V
Current - supply3.5mA
ProtocolEthernet
InterfaceSPI
Operating temperature-40°C ~ 125°C (TJ)
StandardsIEEE 802.3
GradeAutomotive
PackageTape & Reel (TR); Cut Tape (CT)
FunctionSwitch
QualificationAEC-Q100
Case159-LFBGA

Product details

Automotive Ethernet switch with SPI control

The NXP SJA1105PELY is an automotive-grade Ethernet switch controlled over an SPI interface, compliant with IEEE 802.3 standards. It is AEC-Q100 qualified and rated for an operating junction temperature range of -40°C to 125°C.

Package and assembly

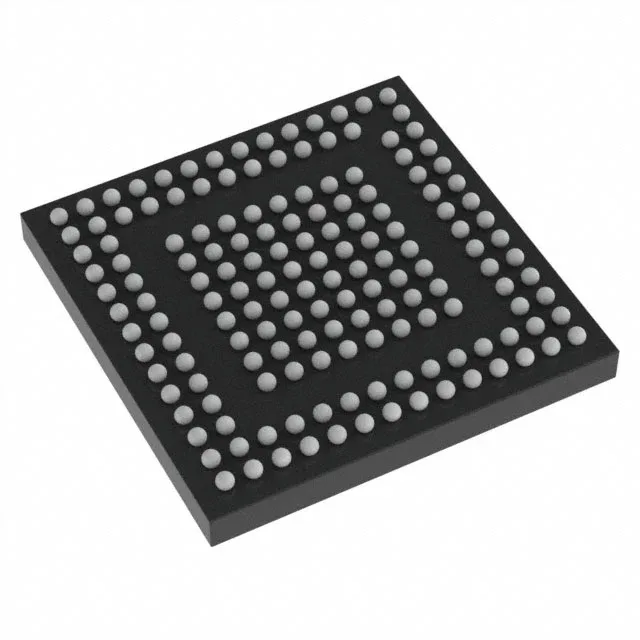

The SJA1105PELY is supplied in a 159-ball LFBGA package measuring 12x12 mm. This fine-pitch BGA requires a controlled reflow profile and post-solder X-ray inspection to verify ball wetting. The package is ROHS3 compliant. The part is available in Tape & Reel or Cut Tape formats; store the reels in a dry cabinet if the moisture-sensitive label indicates a floor life below the assembly shift duration.

Lifecycle and sourcing

The SJA1105PELY carries an Active product status, meaning NXP continues to manufacture it with no announced end-of-life. No last-time-buy or phase-out schedule is in effect. The ROHS3 compliance is current and does not require a transition.

Frequently asked questions

Is SJA1105PELY obsolete or still active?

SJA1105PELY is Active — NXP lists it as current production with no end-of-life notice. No LTB risk exists today.

Is SJA1105PELY AEC-Q100 qualified?

Yes, the SJA1105PELY carries AEC-Q100 qualification, confirming it meets automotive stress and reliability standards.
