40 I/O on a single I²C address — what that buys the design

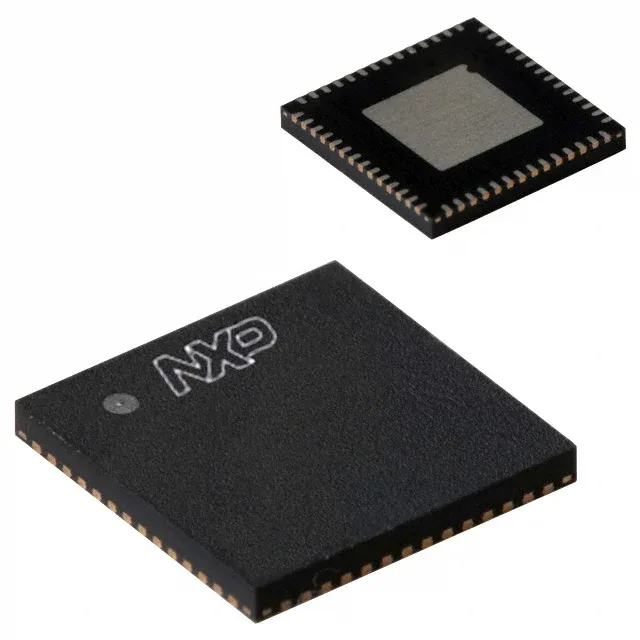

The NXP PCA9506BS,118 is a 40-bit I²C GPIO expander in a 56-HVQFN package. Each output can source 10 mA or sink 25 mA, enough to drive LEDs or small relays directly. A built-in Power-On Reset (POR) holds the outputs in a known state until the host configures them, and the interrupt output signals the controller when an input changes — no polling required.
Supply rail and I²C bus compatibility
The I²C interface is rated for 400 kHz (Fast-mode), which keeps up with most sensor and control reads. If your bus runs at 100 kHz standard mode, the part is backward-compatible.
Output drive — when you can skip the buffer
The 10 mA source / 25 mA sink per pin is atypical for a GPIO expander — many parts top out at 4-8 mA. That drive strength lets you directly switch LED arrays, small indicator lamps, or low-power relays without external transistor arrays. The push-pull output type also eliminates the need for pull-up resistors on output lines, simplifying the BOM.
