NXP USA Inc. MKL46Z128VMC4 — Microcontrollers & Processors (MCU / MPU / DSP)

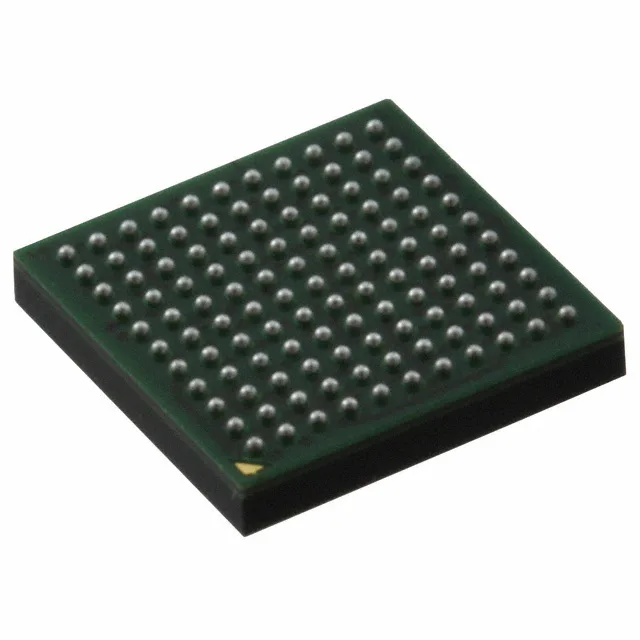

NXP MKL46Z128VMC4 Kinetis KL4 MCU, 48 MHz Cortex-M0+, 128KB Flash, 121-MAPBGA

MPNMKL46Z128VMC4
Active

NXP Kinetis KL4 32-bit ARM Cortex-M0+ MCU, MKL46Z128VMC4, 48 MHz, 128 KB Flash, 16 KB RAM, USB OTG, 84 I/O, 1.71V–3.6V, -40°C to 105°C, 121-MAPBGA (8x8 mm).

$11.2400Ref. price · indicative, final on quote
NXP USA Inc. MKL46Z128VMC4 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

MKL46Z128VMC4 specifications
ParameterValue
SeriesKinetis KL4
MountingSurface Mount
Oscillator typeInternal
Program memory typeFLASH
Voltage - supply (Vcc (Vdd))1.71V ~ 3.6V
Operating temperature-40°C~105°C(TA)
Speed48MHz
PackageTray
RAM size16K x 8
Core size32-Bit Single-Core
PeripheralsBrown-out Detect/Reset, DMA, I²S, LVD, POR, PWM, WDT
ConnectivityI²C, LINbus, SPI, UART/USART, USB, USB OTG
Number of i (O)84
Core processorARM® Cortex®-M0+
Case121-LFBGA
Data convertersA/D - 16bit; D/A - 12bit
Program memory size128KB (128K x 8)

Product details

It runs at 48 MHz with 128 KB of Flash program memory and 16 KB of RAM, packaged in a 121-ball MAPBGA (8x8 mm) for dense PCB layouts.

Memory and peripheral budget for a BGA-footprint MCU

128 KB Flash and 16 KB RAM on a 48 MHz Cortex-M0+ core is a balanced pairing for mid-complexity firmware — enough for a USB CDC stack plus a Modbus RTU slave, but the 16 KB RAM imposes a ceiling on data buffering. If your application streams multiple ADC channels over USB, watch the heap allocation. The 84 I/O count in a 121-ball BGA means roughly 37 balls are power or ground — expect a 4-layer PCB minimum.

Frequently asked questions

What are the key specifications of MKL46Z128VMC4?

The MKL46Z128VMC4 is a 32-bit ARM Cortex-M0+ MCU running at 48 MHz with 128 KB Flash and 16 KB RAM. It has 84 I/O, USB OTG, LINbus, SPI, I²C, and UART interfaces, plus 16-bit ADC and 12-bit DAC converters. The supply range is 1.71 V to 3.6 V and it operates from -40°C to 105°C in a 121-ball MAPBGA package.

Does MKL46Z128VMC4 have a pin-compatible alternative?

No official pin-compatible replacement or second-source alternate is listed in the available documentation. For a drop-in alternative, cross-reference other Kinetis KL4 series devices in the same 121-MAPBGA package — density and peripheral sets vary by order code.

What is the operating temperature range of MKL46Z128VMC4?

The operating temperature range is -40°C to 105°C, making it suitable for industrial and automotive auxiliary applications where ambient temperatures exceed standard commercial limits.
