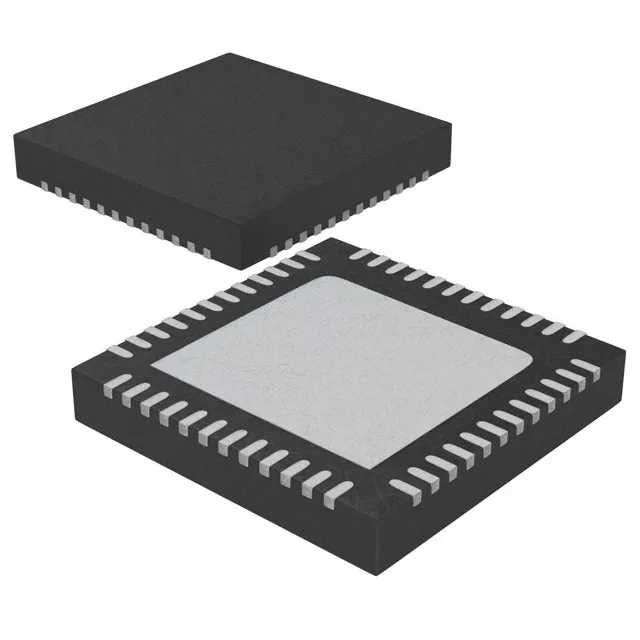

The NXP MKL16Z128VFT4R is a 32-bit ARM Cortex-M0+ microcontroller from the Kinetis KL1 series, clocked at 48 MHz with 128 KB Flash and 16 KB RAM. It integrates a 16-bit A/D converter and a 12-bit D/A converter, 40 general-purpose I/O lines, and peripheral set including DMA, I²S, PWM, and watchdog timer. The part is rated for a -40°C to 105°C operating range and a 1.71 V to 3.6 V supply, making it suitable for industrial sensor nodes, motor-control interfaces, and battery-powered instrumentation where extended temperature tolerance is required.
48 MHz Cortex-M0+ — throughput for control loops
The 48 MHz core speed on this Cortex-M0+ handles control loops and sensor fusion without an FPU. The 16 KB RAM supports a modest RTOS heap and buffered ADC channels; the 128 KB Flash leaves room for a bootloader and application code.
