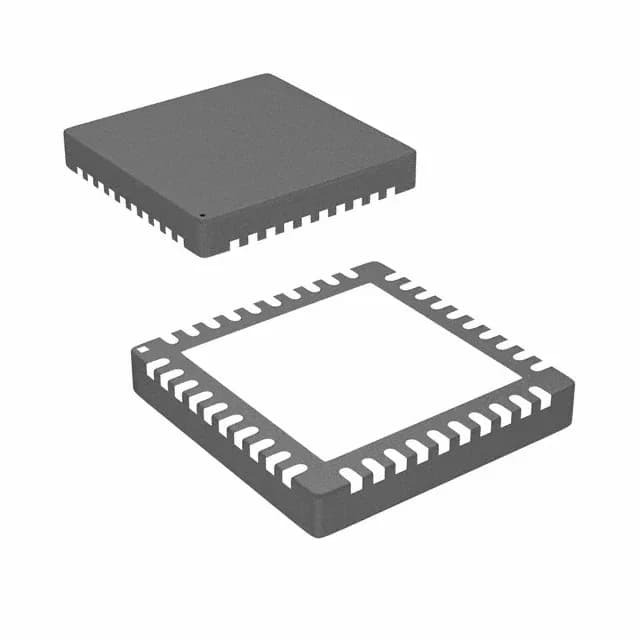

NXP USA Inc. MK20DX32VFM5 — Microcontrollers & Processors (MCU / MPU / DSP)

NXP MK20DX32VFM5 Kinetis K20 ARM Cortex-M4 MCU, 50 MHz, 32 KB Flash

MPNMK20DX32VFM5
Active

NXP Kinetis K20 series 32-bit ARM Cortex-M4 MCU, MK20DX32VFM5, 50 MHz core, 32 KB Flash, 8 KB RAM, 2 KB EEPROM, 20 I/O, USB OTG, 6-channel 16-bit ADC, -40 to 105 °C, 32-QFN-EP 5x5 mm, tray.

$3.8679Ref. price · indicative, final on quote
NXP USA Inc. MK20DX32VFM5 datasheet (PDF)
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

MK20DX32VFM5 specifications
ParameterValue
SeriesKinetis K20
MountingSurface Mount
Oscillator typeInternal
Program memory typeFLASH
Voltage - supply (Vcc (Vdd))1.71V ~ 3.6V
Operating temperature-40°C ~ 105°C (TA)
Speed50MHz
PackageTray
RAM size8K x 8
Core size32-Bit Single-Core
EEPROM size2K x 8
PeripheralsDMA, I²S, LVD, POR, PWM, WDT
ConnectivityI²C, IrDA, SPI, UART/USART, USB, USB OTG
Number of i (O)20
Core processorARM® Cortex®-M4
Case32-VFQFN Exposed Pad
Data convertersA/D 6x16b
Program memory size32KB (32K x 8)

Product details

Compact Cortex-M4 with USB and industrial temperature range

The MK20DX32VFM5: 32-bit ARM Cortex-M4 MCU at 50 MHz with 32 KB Flash, 8 KB RAM, 2 KB EEPROM, USB OTG, and 6-channel 16-bit ADC.

50 MHz Cortex-M4 — what it buys the BOM

The DSP extension and floating-point unit (FPU) are absent on this Cortex-M4 — it is the single-precision FPU-less variant, so keep that in mind if your algorithm relies on hardware float.

Peripheral set and I/O budget

Twenty I/O pins with I²C, SPI, UART, IrDA, and USB OTG connectivity. Six-channel 16-bit ADC and DMA offload the CPU.

Lifecycle status is Active. No last-time-buy or NRND flag. Available through independent distribution.

Frequently asked questions

What is the MK20DX32VFM5 operating temperature range?

The MK20DX32VFM5 is rated for -40°C to 105°C ambient, covering industrial and extended-temperature environments.

What is the operating voltage of MK20DX32VFM5?

The supply voltage range is 1.71 V to 3.6 V, allowing operation from a single 3.3 V rail or a 1.8 V battery with a boost converter.

What is the closest pin-compatible alternative to MK20DX32VFM5?

Pin-compatible density upgrades within the Kinetis K20 family — MK20DX64VFM5 (64 KB Flash) and MK20DX128VFM5 (128 KB Flash) — share the same 32-QFN-EP footprint and peripheral set. Firmware migration requires only a memory map adjustment.
