What this part is and where it fits
The NXP LPC3240FET296015 is an ARM926EJ-S microcontroller running at 266 MHz, built for applications that need a balance of processing throughput and peripheral integration. It carries 256K x 8 SRAM on-chip but no internal flash — program storage lives in external memory via the EBI/EMI interface. The part is aimed at industrial control, networked gateways, and human-machine interfaces where Ethernet and USB OTG connectivity are required. Operating temperature spans -40°C to 85°C, covering most factory-floor and outdoor telecom enclosures.
Key features and what they mean for the BOM
The 266 MHz ARM926EJ-S core gives this MCU enough headroom to run a lightweight OS (e.g., FreeRTOS or a small Linux build) while handling Ethernet packet processing and USB host/device traffic. The 256 KB SRAM is the working memory for code and data — it is not huge, so external SDRAM or SRAM is typical for frame buffers or larger heaps. ROMless program memory means the BOM must include a serial NOR or NAND flash, adding a few cents but giving flexibility in firmware size and field updates. The 51 GPIOs, plus dedicated I²C, SPI, UART, and I²S interfaces, cover most sensor and actuator connections without external muxing.
Package and rework reality

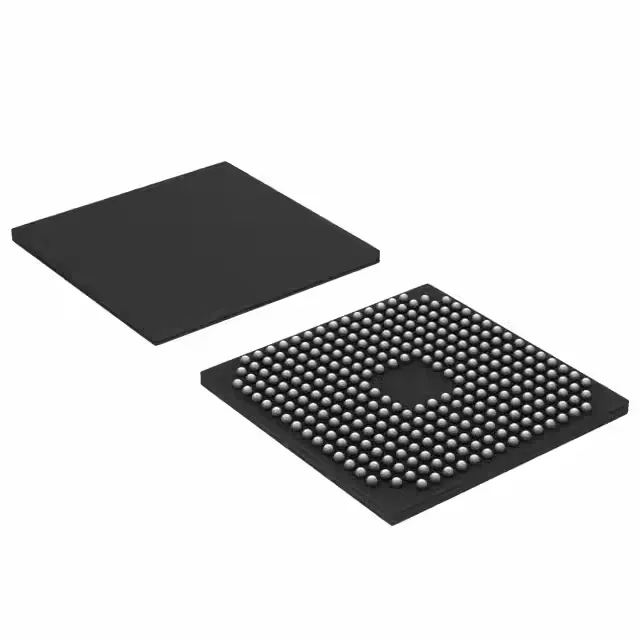

The 296-ball TFBGA (15x15 mm) is a fine-pitch BGA. This is not a hand-solder part; rework requires a hot-air station with a preheat plate, a stencil for fresh solder balls, and X-ray inspection to verify joint integrity.
