Littelfuse Inc. 59065-1-T-02-E
MPN 59065-1-T-02-E
Active
Spot Stock · 24-48h Dispatch
100% Original Sealed

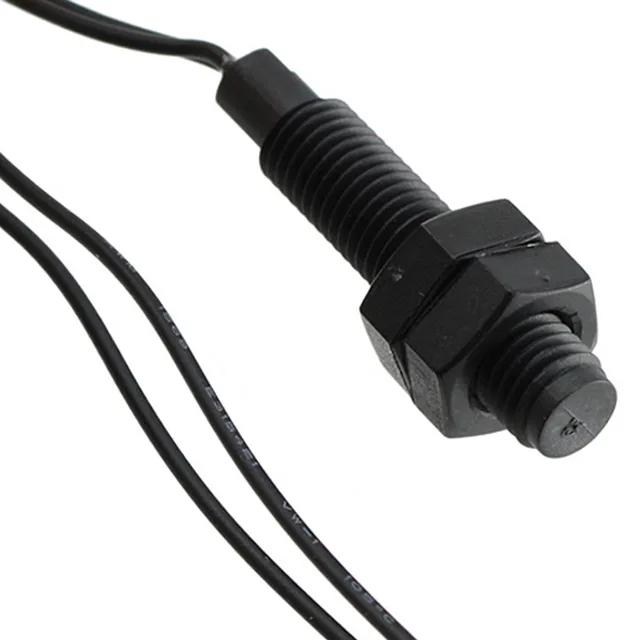

SENSOR REED SW SPST-NO W LEADS
In Stock: 449 pcs
MOQ: 1 pcs
Logistics: DHL / FedEx DAP (Global Express · 3-7d)
Russia & CIS DDP (Door-to-Door Cleared)
Dispatch: Shenzhen / HK
Unit Price (USD)
$5.31 / pc
Direct Purchase Ready
Volume Pricing Breaks Confirmed upon quotation
1+ pcs
$5.31
10+ pcs
$4.78
30+ pcs
$4.35
100+ pcs
$3.93
Working on a production BOM or have a target unit price? Submit Target Price
[SPEC] Essential Parameters Snapshot Full Specifications (9)
Package / Case Cylinder, Threaded
Full Technical Specifications
9 Parameters| Parameter / Attribute | Specification / Value |
|---|---|
| Type | Reed Switch |
| Series | 59065 |
| Output type | SPST-NO |
| Operating temperature | -40°C ~ 105°C (TA) |
| Actuator material | Magnet |
| Package | Box |
| Must operate | 7.00mm |
| Case | Cylinder, Threaded |
| Termination style | Wire Leads with Connector |
