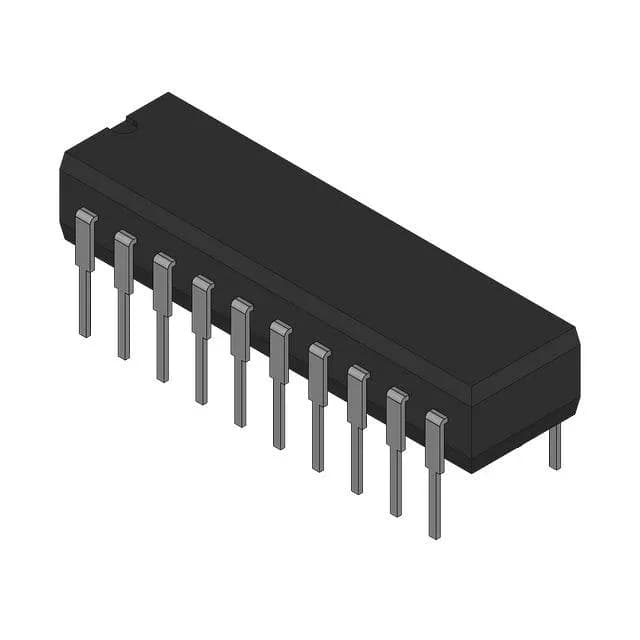

GAL16V8C-5LP
Lattice Semiconductor Corporation
5 nsGAL® 16V8Bulk
Ref. price$5.6100
Lead time on requestGet quote ›
Lattice Semiconductor GAL1 Series
12 variants · Lattice Semiconductor
About the Lattice Semiconductor Lattice Semiconductor GAL1 Series series
The Lattice Semiconductor Lattice Semiconductor GAL1 Series series groups 12 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common number of macrocells of 8, package of Bulk and programmable type of EE PLD. Variants differ by case, mounting type and speed, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- 20-DIP (0.300\", 7.62mm) · 20-LCC (J-Lead) · 20-SOIC (0.295\", 7.50mm Width)
- Mounting type
- Surface Mount · Through Hole
- Speed
- 5 ns · 7.5 ns · 12 ns · 15 ns
Variant comparison

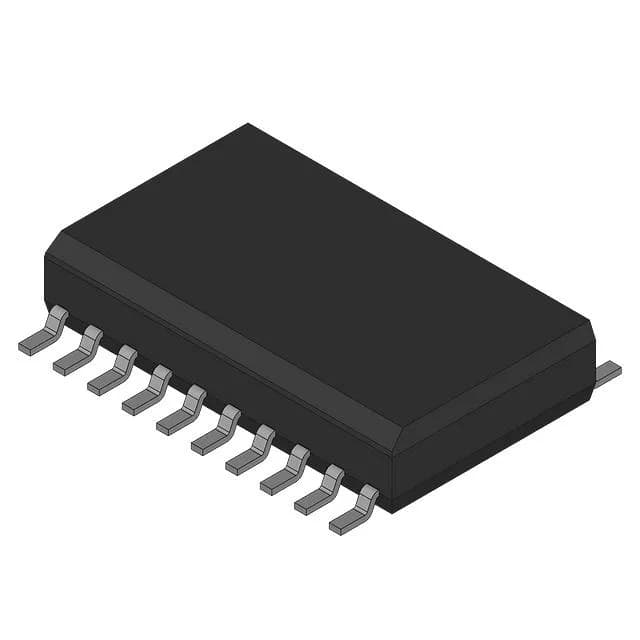

| Parameter | GAL16V8C-5LP | GAL16V8C-7LP | GAL16V8Z-12QP | GAL16V8Z-12QS | GAL16V8ZD-15QJ | GAL16V8ZD-15QP |
|---|---|---|---|---|---|---|
| Case | 20-DIP (0.300\", 7.62mm) | 20-DIP (0.300\", 7.62mm) | 20-DIP (0.300\", 7.62mm) | 20-SOIC (0.295\", 7.50mm Width) | 20-LCC (J-Lead) | 20-DIP (0.300\", 7.62mm) |
| Mounting type | Through Hole | Through Hole | Through Hole | Surface Mount | Surface Mount | Through Hole |
| Speed | 5 ns | 7.5 ns | 12 ns | 12 ns | 15 ns | 15 ns |
Shared specifications
- Number of macrocells
- 8
- Package
- Bulk
- Programmable type
- EE PLD
- Voltage - input
- 4.75V ~ 5.25V
Request a quote on any Lattice Semiconductor GAL1 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Lattice Semiconductor Lattice Semiconductor GAL1 Series variants differ?
- Lattice Semiconductor GAL1 Series part numbers differ by case, mounting type and speed. Use the selection guide above to pick by case.
- How many Lattice Semiconductor Lattice Semiconductor GAL1 Series part numbers are listed?
- 12 Lattice Semiconductor Lattice Semiconductor GAL1 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Lattice Semiconductor Lattice Semiconductor GAL1 Series?
- Request a quote (RFQ) for any Lattice Semiconductor GAL1 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
