Infineon Technologies S25FL256SAGNFV000 — Memory (DRAM / SRAM / Flash / EEPROM)

S25FL256SAGNFV000 256 Mbit NOR Flash, Quad SPI, 133 MHz

MPNS25FL256SAGNFV000
Active

Cypress (Infineon) FL-S series, S25FL256SAGNFV000, 256 Mbit NOR Flash memory, SPI - Quad I/O interface, 133 MHz clock, 2.7 V to 3.6 V supply, -40°C to 105°C, 8-WSON (6x8 mm) package, Tray.

$4.3234Ref. price · indicative, final on quote
Packaging8-WDFN Exposed Pad
RoHSROHS3 Compliant
SeriesFL-S
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

S25FL256SAGNFV000 specifications
ParameterValue
SeriesFL-S
Memory typeNon-Volatile
MountingSurface Mount
Supply voltage2.7V ~ 3.6V
Clock frequency133 MHz
Memory interfaceSPI - Quad I/O
Operating temperature-40°C ~ 105°C (TA)
PackageTray
TechnologyFLASH - NOR
Memory size256Mbit
Memory formatFLASH
Case8-WDFN Exposed Pad
Memory organization32M x 8

Product details

256 Mbit Quad-SPI NOR Flash — active, industrial-rated, and ready for new designs

The Cypress (Infineon) S25FL256SAGNFV000 is a 256 Mbit FL-S series NOR Flash memory organized as 32M x 8 bits, accessed through a Quad SPI interface clocked at 133 MHz.

The Quad I/O interface doubles the read throughput over standard SPI by using four data lines simultaneously. At 133 MHz, the effective read rate reaches 66 MB/s in Quad I/O mode, which is sufficient for fast boot, code shadowing, and firmware-over-the-air staging without needing a parallel NOR or a higher-pin-count interface.

This removes the procurement risk of a forced redesign mid-production.

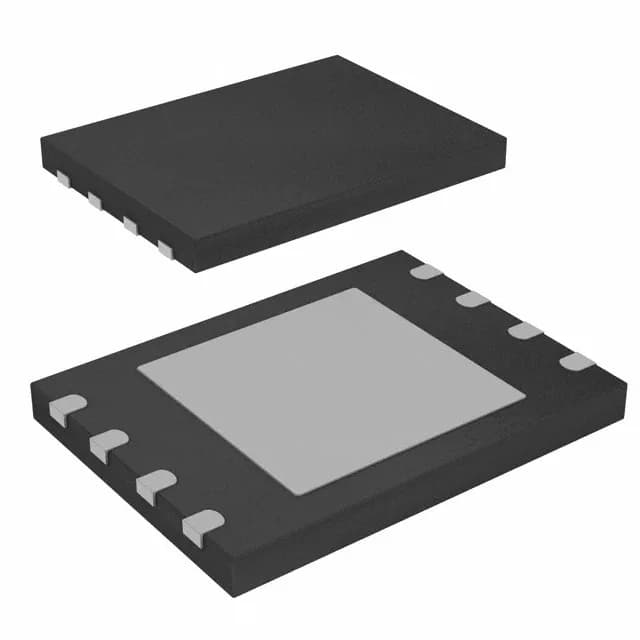

Package and footprint — 8-WSON with exposed pad

The 8-WSON package (6x8 mm) with an exposed pad is a space-efficient footprint for embedded designs. The package is surface-mount, compatible with standard reflow profiles.

Frequently asked questions

Does S25FL256SAGNFV000 support Quad SPI?

Yes, the S25FL256SAGNFV000 uses a Quad I/O SPI interface, which enables four-bit-wide data transfers at up to 133 MHz for higher read throughput compared to standard SPI.

What is the closest functional equivalent to S25FL256SAGNFV000?

The S25FL256SAGMFV000 is a pin-compatible and functionally identical sibling in the same FL-S series, same 256 Mbit density and 133 MHz Quad SPI, but packaged in an 8-SOIC (208 mil) instead of the 8-WSON. The S25FL256SAGMFVG00 is another SOIC variant with the same specs. The S25FL256SAGMFIR00 is a commercial-temperature (85°C) version in SOIC. All share the same die and interface.

Is S25FL256SAGNFV000 RoHS compliant?

Yes, the S25FL256SAGNFV000 is ROHS3 compliant, meeting the latest EU directive requirements without exemptions.
