Infineon Technologies BTS56033LBBAUMA1
MPNBTS56033LBBAUMA1
End of Life
$3.0500Ref. price · indicative, final on quote
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Automotive, AEC-Q100 |
| Output type | N-Channel |
| Type | General Purpose |
| Mounting | Surface Mount |
| Voltage - load | 5.5V ~ 28V |
| Voltage - supply (Vcc (Vdd)) | 3.8V ~ 5.5V |
| I/O channels | 6 |
| Interface | SPI |
| Operating temperature | -40°C~150°C(TJ) |
| Package | Tape & Reel (TR) |
| Features | Slew Rate Controlled |
| Rds on | 39mOhm, 110mOhm |

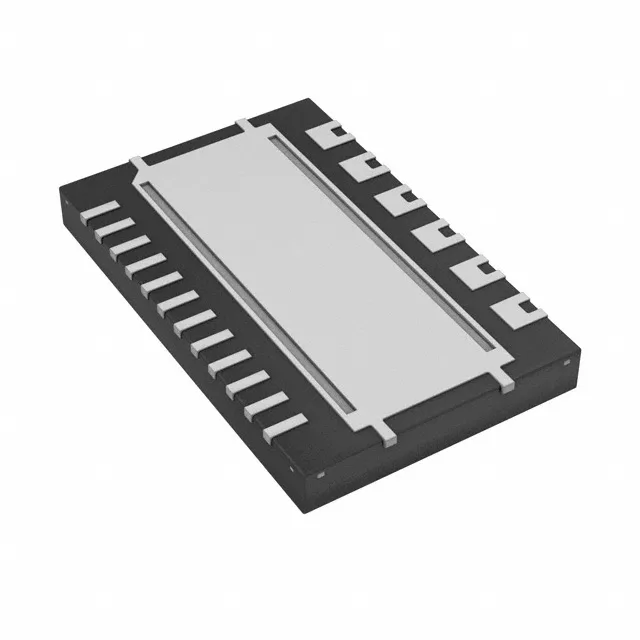

| Case | 24-PowerTDFN |
| Fault protection | Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO |
| Output configuration | High Side |
| Ratio - Input:Output | 2:3 |
