Infineon BTS5566GXUMA1 DC DC Regulator, Switched Capacitor (Charge Pump) topology, 5 outputs, 2 MHz, SPI dimming, 4.5V to 28V supply, -40°C to 150°C, PG-DSO-36-34 package.
| Parameter | Value |
|---|---|
| Type | DC DC Regulator |
| Mounting type | Surface Mount |
| Voltage | 4.5V |
| Frequency | 2MHz |
| Number of outputs | 5 |
| Operating temperature | -40°C ~ 150°C (TJ) |
| Dimming | SPI |
| Package | Tape & Reel (TR) |
| Topology | Switched Capacitor (Charge Pump) |
| Applications | Automotive |

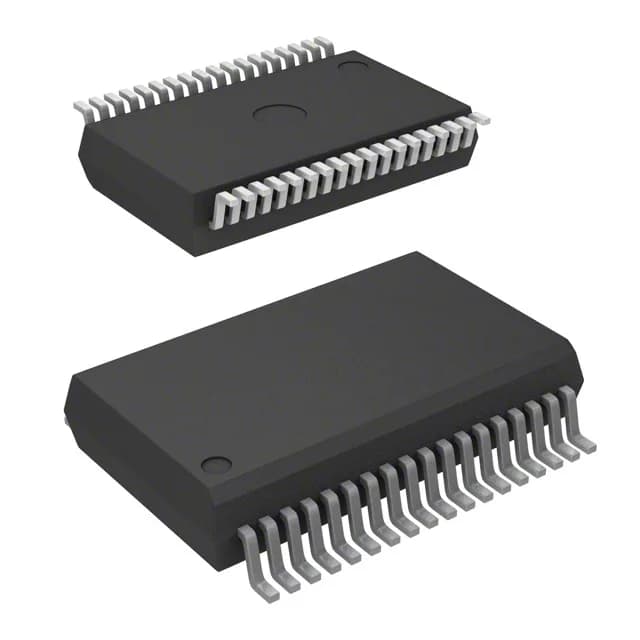

| Case | 36-BSSOP (0.295\", 7.50mm Width) |
| Internal switch | Yes |
Dimming is controlled via SPI, and the part switches at 2 MHz, allowing small external capacitors.
The BTS5566GXUMA1 is officially obsolete per Infineon's lifecycle status. No official replacement or successor part is listed on the record.
The BTS5566GXUMA1 is obsolete and sourced through independent distribution.
No official successor or pin-compatible replacement is recorded for the BTS5566GXUMA1. For a functional alternative, review Infineon's current charge pump regulator portfolio with SPI dimming and five outputs.
