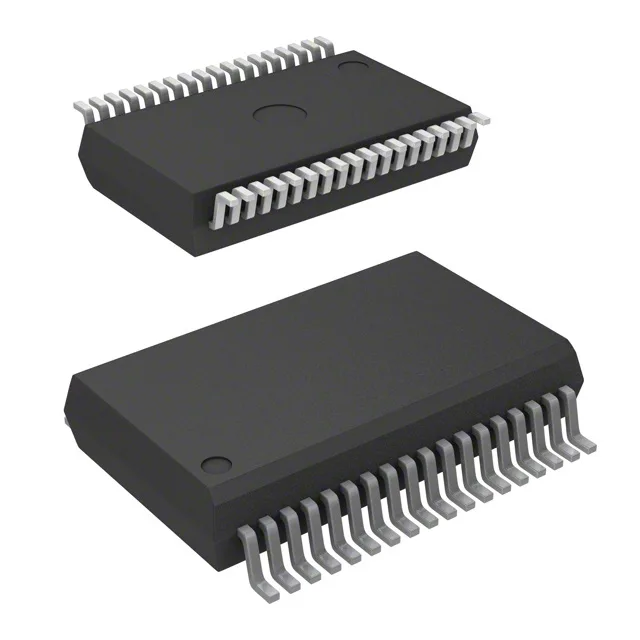

BTS5482SFXUMA2
MPNBTS5482SFXUMA2
Last Buy
$3.9660Ref. price · indicative, final on quote
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Automotive, AEC-Q100 |
| Output type | N-Channel |
| Type | General Purpose |
| Mounting | Surface Mount |
| Voltage - load | 4.5V ~ 28V |
| Voltage - supply (Vcc (Vdd)) | 3V ~ 5.5V |
| I/O channels | 4 |
| Interface | SPI |
| Operating temperature | -40°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Slew Rate Controlled |
| Rds on | 4mOhm, 15mOhm |
| Case | 36-BSSOP (0.295\", 7.50mm Width) |
| Fault protection | Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO |
| Output configuration | High Side |
| Ratio - Input:Output | 3:4 |
