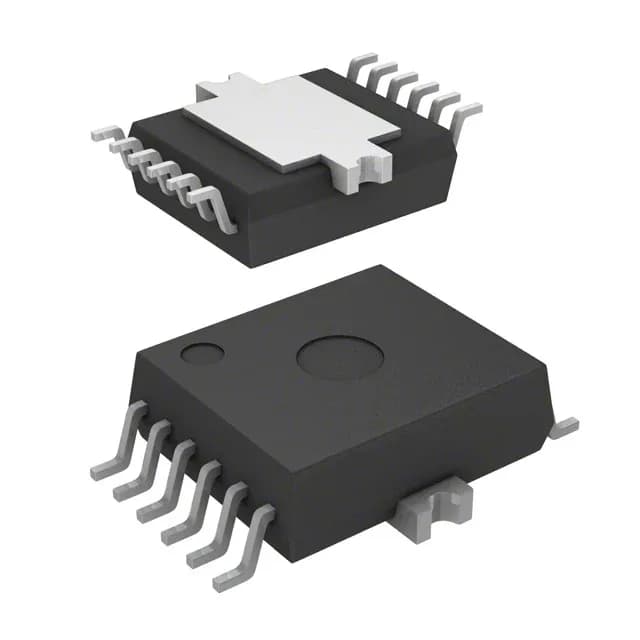

BTS5234LNT PROFET dual high-side switch, 45mOhm, obsolete

MPNBTS5234LNT
Obsolete

Infineon PROFET BTS5234LNT, dual-channel high-side power switch, 45mOhm typ Rds(on), 4.5V to 28V load, 3.5A max per output, PG-DSO-12-2 package, -40°C to 150°C.

BTS5234LNT datasheet
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

BTS5234LNT Technical Specifications
ParameterValue
SeriesPROFET®
Input typeNon-Inverting
Output typeN-Channel
Switch typeGeneral Purpose
Mounting typeSurface Mount
Voltage - load4.5V ~ 28V
Voltage - supply (Vcc (Vdd))Not Required
Current - output3.5A
Number of outputs2
InterfaceOn/Off
Operating temperature-40°C~150°C(TJ)
PackageTape & Reel (TR)
FeaturesAuto Restart
Rds on45mOhm
Case12-BSOP (0.295\", 7.50mm Width) Exposed Pad
Fault protectionCurrent Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Output configurationHigh Side
Ratio - Input:Output1:1

Product details

Dual high-side switch for 12V/24V loads

The Infineon BTS5234LNT is a PROFET dual-channel high-side power switch in a PG-DSO-12-2 package with exposed pad. This part switches resistive, inductive, and lamp loads using an On/Off interface and non-inverting input to control two independent outputs.

Protection set and thermal range

Fault protection includes current limiting (fixed), open-load detection, over-temperature shutdown, and over-voltage clamping — all integrated, no external sense resistor needed. The Auto Restart feature means the switch re-enables after a fault condition clears, which suits loads that may temporarily exceed the current threshold during inrush without requiring a system reset.

The BTS5234LNT is listed as obsolete by Infineon. For new designs, consider the current PROFET+2 or PROFET+24V families from Infineon — these are not pin-compatible replacements but offer similar dual-channel high-side functionality with updated protection and diagnostic features. Cross-reference the pinout and package before substituting.

Frequently asked questions

What is the difference between BTS5234LNT and BTS5234L?

The suffix 'NT' typically indicates a specific packaging or tape-and-reel variant. The electrical specifications — dual high-side, 45 mOhm Rds(on), 3.5 A output, same protection set — are identical. The difference is in the shipping medium and possibly the date code range; confirm with the datasheet for exact ordering code breakdown.
