Infineon Technologies BSC080N12LSGATMA1 — Discrete Semiconductors

Infineon BSC080N12LSGATMA1 OptiMOS™ N-Ch 120V 99A

MPNBSC080N12LSGATMA1
End of Life

Infineon OptiMOS™ N-Channel MOSFET, BSC080N12LSGATMA1, 120 V Vdss, 99 A Id, 8 mOhm Rds(on), PG-TDSON-8 package, Tape & Reel.

$2.71Ref. price · indicative, final on quote
Packaging8-PowerTDFN
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

BSC080N12LSGATMA1 Technical Specifications
ParameterValue
SeriesOptiMOS™
FET typeN-Channel
Mounting typeSurface Mount
Drain to source voltage120 V
Drive voltage (Max rds on, min rds on)4.5V, 10V
Current - continuous drain (Id) @ 25°C12A (Ta), 99A (Tc)
Power dissipation156W (Tc)
Operating temperature-55°C ~ 150°C (TJ)
PackageTape & Reel (TR); Cut Tape (CT)
Vgs±20V
TechnologyMOSFET (Metal Oxide)
Case8-PowerTDFN
Vgs(th) (Max) @ id2.4V @ 112µA
Rds on (Max) @ id, vgs8mOhm @ 50A, 10V
Gate charge (Qg) (Max) @ vgs79 nC @ 10 V
Input capacitance (Ciss) (Max) @ vds7400 pF @ 60 V

Product details

Active production — a current-generation power MOSFET for 120 V rails

The BSC080N12LSGATMA1 is an active-production N-channel MOSFET from Infineon's OptiMOS™ series, meaning it remains a viable choice for new designs and ongoing production without last-time-buy risk. Rated for a drain-to-source voltage of 120 V and a continuous drain current of 99 A at the case (Tc), this part suits 48 V, 60 V, and 80 V bus architectures with healthy derating margin.

8 mOhm Rds(on) at 10 V gate drive — the conduction-loss anchor

The maximum on-resistance is 8 mOhm at 50 A drain current with 10 V gate drive — this sets the conduction loss floor for a synchronous buck or OR-ing application. At 50 A, the dissipation is 20 W (I²R), which must be managed by the thermal path through the PG-TDSON-8 package's exposed pad. Gate charge is 79 nC typical at 10 V, and input capacitance (Ciss) is 7400 pF at 60 V Vds — these numbers define the gate-driver current requirement and switching losses. A driver sourcing 2 A can charge the gate in roughly 40 ns, but the Miller plateau region dominates the switching transition.

PG-TDSON-8 footprint — surface-mount power density

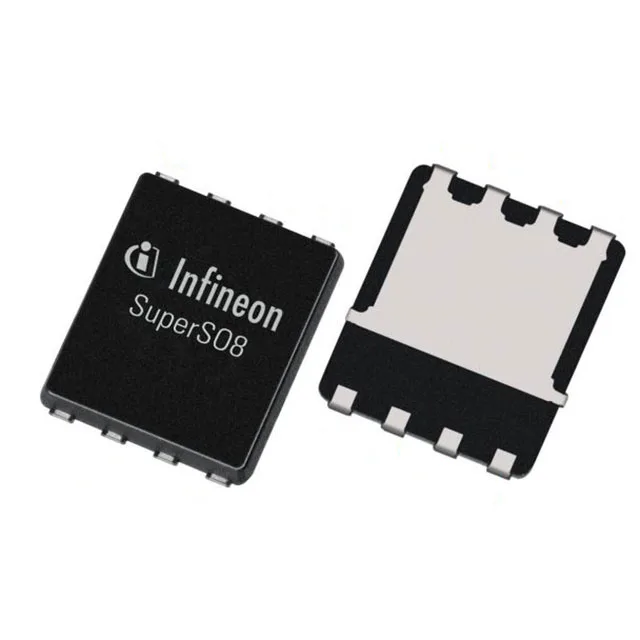

Housed in a PG-TDSON-8 (8-PowerTDFN) package, this MOSFET is a surface-mount device with an exposed drain pad for thermal dissipation. The 156 W power dissipation rating at the case assumes adequate PCB copper area and thermal vias under the pad — a four-layer board with a 2 oz inner plane is typical for designs pushing 50 A continuous. The operating junction temperature range of -55°C to 150°C covers automotive under-hood and industrial ambient conditions, though the 99 A continuous rating at Tc drops significantly as ambient temperature rises — derate per the datasheet's thermal impedance curve.
