Infineon Technologies BSC0 Discrete Semiconductors Series

3 variants · Infineon TechnologiesAll Discrete Semiconductors →

About the Infineon Technologies BSC0 Discrete Semiconductors Series

The Infineon Technologies BSC0 Discrete Semiconductors Series series groups 3 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common case of 8-PowerTDFN, FET type of N-Channel and mounting of Surface Mount. Variants differ by current - continuous drain (Id) @ 25°C, drain to source voltage and drive voltage (Max rds on, min rds on), so you can match the exact current - continuous drain (Id) @ 25°C your application requires using the selection guide below. All listed Infineon Technologies BSC0 Discrete Semiconductors Series part numbers are active and orderable.

Select a variant by

Current - continuous drain (Id) @ 25°C: 12A (Ta), 99A (Tc) · 25A (Ta), 134A (Tc) · 42A (Ta), 433A (Tc)
Drain to source voltage: 20 V · 30 V · 120 V
Drive voltage (Max rds on, min rds on): 2.5V, 4.5V · 4.5V, 10V
Gate charge (Qg) (Max) @ vgs: 52.7 nC @ 4.5 V · 79 nC @ 10 V · 122 nC @ 10 V
Input capacitance (Ciss) (Max) @ vds: 7400 pF @ 60 V · 7800 pF @ 10 V · 8900 pF @ 15 V
Operating temperature: -55°C ~ 150°C (TJ) · -55°C ~ 175°C (TJ)
Package: Bulk · Tape & Reel (TR); Cut Tape (CT)
Power dissipation: 2.8W (Ta), 78W (Tc) · 3W (Ta), 188W (Tc) · 156W (Tc)

Shared specifications

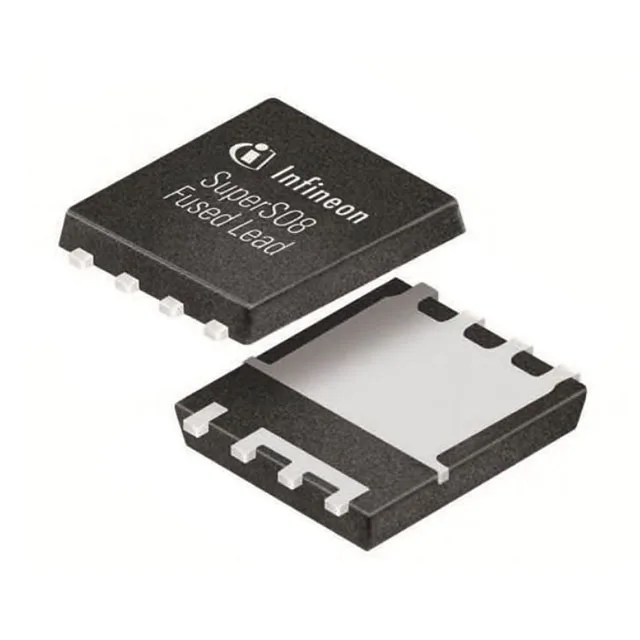

Case: 8-PowerTDFN
FET type: N-Channel
Mounting: Surface Mount
Technology: MOSFET (Metal Oxide)

Variant comparison

Parameter	BSC005N03LS5ATMA1	BSC026N02KSG	BSC080N12LSGATMA1
Current - continuous drain (Id) @ 25°C	42A (Ta), 433A (Tc)	25A (Ta), 134A (Tc)	12A (Ta), 99A (Tc)
Drain to source voltage	30 V	20 V	120 V
Drive voltage (Max rds on, min rds on)	4.5V, 10V	2.5V, 4.5V	4.5V, 10V
Gate charge (Qg) (Max) @ vgs	122 nC @ 10 V	52.7 nC @ 4.5 V	79 nC @ 10 V
Input capacitance (Ciss) (Max) @ vds	8900 pF @ 15 V	7800 pF @ 10 V	7400 pF @ 60 V
Operating temperature	-55°C ~ 175°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)
Package	Tape & Reel (TR); Cut Tape (CT)	Bulk	Tape & Reel (TR); Cut Tape (CT)
Power dissipation	3W (Ta), 188W (Tc)	2.8W (Ta), 78W (Tc)	156W (Tc)

Request a quote on any Infineon Technologies BSC0 Discrete Semiconductors Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
