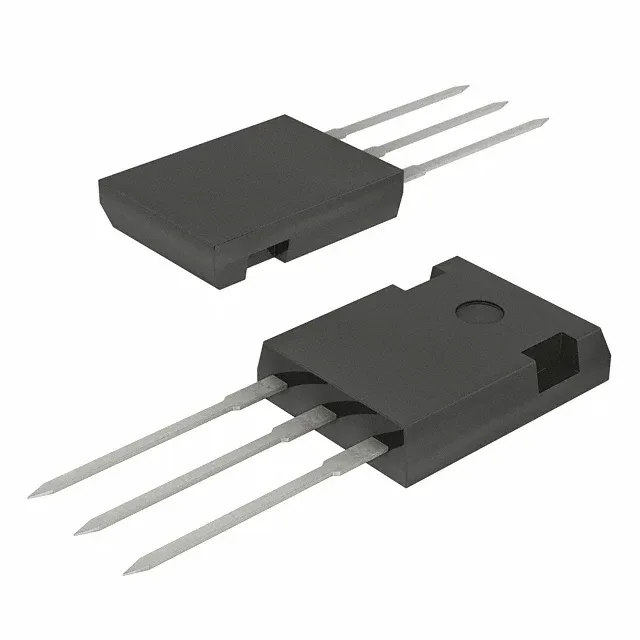

GeneSiC Semiconductor GD2X20MPS12D
MPN GD2X20MPS12D
Active
Spot Stock · 24-48h Dispatch
100% Original Sealed
1200V 40A TO-247-3 SIC SCHOTTK
In Stock: 586 pcs
MOQ: 1 pcs
Logistics: DHL / FedEx DAP (Global Express · 3-7d)
Russia & CIS DDP (Door-to-Door Cleared)
Dispatch: Shenzhen / HK
Unit Price (USD)
$15.84 / pc
Direct Purchase Ready
Volume Pricing Breaks Confirmed upon quotation
1+ pcs
$15.84
10+ pcs
$14.26
30+ pcs
$12.99
100+ pcs
$11.72
500+ pcs
$10.93
Working on a production BOM or have a target unit price? Submit Target Price
[SPEC] Essential Parameters Snapshot Full Specifications (13)
Package / Case TO-247-3
Speed / Frequency No Recovery Time > 500mA (Io)
Full Technical Specifications
13 Parameters| Parameter / Attribute | Specification / Value |
|---|---|
| Series | SiC Schottky MPS™ |
| Diode type | Silicon Carbide Schottky |
| Mounting | Through Hole |
| Voltage - DC reverse (Vr) | 1200 V |
| Voltage - forward (Vf) (Max) @ if | 1.8 V @ 20 A |
| Current - reverse leakage @ vr | 10 µA @ 1200 V |
| Current - average rectified (Io) (per diode) | 39A (DC) |
| Operating temperature - junction | -55°C ~ 175°C |
| Speed | No Recovery Time > 500mA (Io) |
| Package | Tube |
| Case | TO-247-3 |
| Diode configuration | 1 Pair Common Cathode |
| Reverse recovery time | 0 ns |
