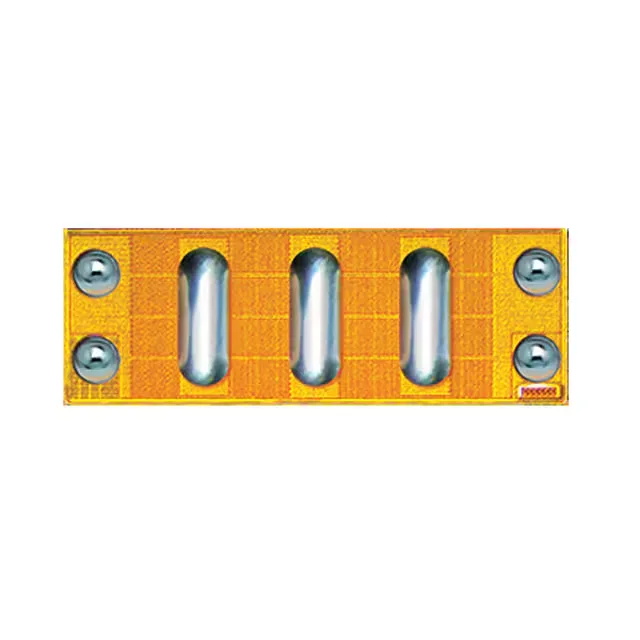

EPC2019
MPNEPC2019
Active
GANFET N-CH 200V 8.5A DIE
$4.78476Price · pay online now
PackagingDie
RoHSROHS3 Compliant
SerieseGaN®
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | eGaN® |
| FET type | N-Channel |
| Mounting | Surface Mount |
| Drain to source voltage | 200 V |
| Drive voltage (Max rds on, min rds on) | 5V |
| Current - continuous drain (Id) @ 25°C | 8.5A (Ta) |
| Operating temperature | -40°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Vgs | +6V, -4V |
| Technology | GaNFET (Gallium Nitride) |
| Case | Die |
| Vgs(th) (Max) @ id | 2.5V @ 1.5mA |
| Rds on (Max) @ id, vgs | 42mOhm @ 7A, 5V |
| Gate charge (Qg) (Max) @ vgs | 2.9 nC @ 5 V |
| Input capacitance (Ciss) (Max) @ vds | 288 pF @ 100 V |
