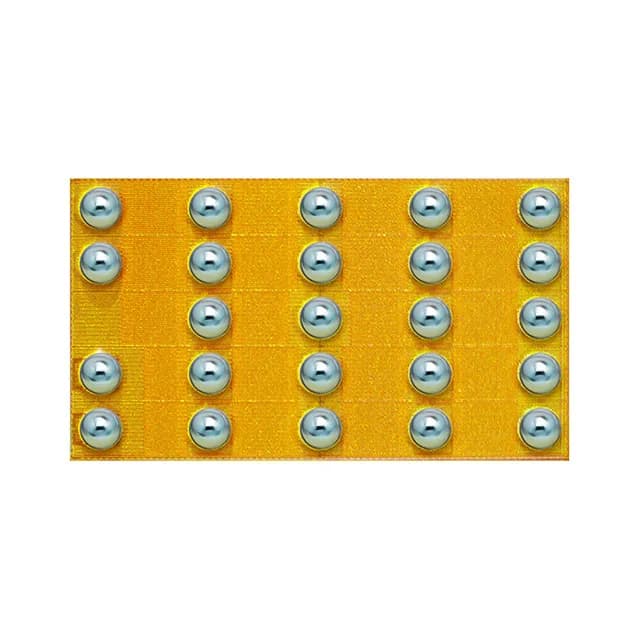

GANFET NCH 60V 31A DIE
$7.02Ref. price · indicative, final on quote
PackagingDie
StockContact for availability
MOQ1 pcs
- 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
- Date & lot codes on quoteStated per line before you commit; label photos on request.
- MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | eGaN® |
| FET type | N-Channel |
| Mounting type | Surface Mount |
| Drain to source voltage | 60 V |
| Current - continuous drain (Id) @ 25°C | 31A (Ta) |
| Operating temperature | -40°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Technology | GaNFET (Gallium Nitride) |
| Case | Die |
| Vgs(th) (Max) @ id | 2.5V @ 15mA |
| Rds on (Max) @ id, vgs | 2.6mOhm @ 30A, 5V |
| Gate charge (Qg) (Max) @ vgs | 17 nC @ 5 V |
| Input capacitance (Ciss) (Max) @ vds | 1800 pF @ 300 V |
