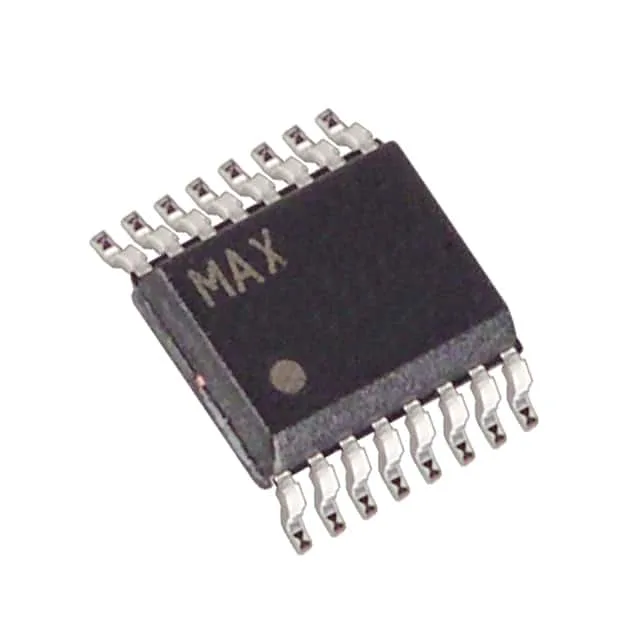

MAX1038AEEE+T
Analog Devices
Surface Mount-40°C ~ 85°CI²C
Ref. price$8.08
Lead time on requestGet quote
MAX1xxx ADCs & Data Converters
258 variants · Analog Devices
About the MAX1xxx ADCs & Data Converters
The Analog Devices MAX1xxx ADCs & Data Converters series groups 258 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common mounting of Surface Mount. Variants differ by case, interface and operating temperature, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- 8-SOIC (0.154\", 3.90mm Width) · 10-TFSOP, 10-MSOP (0.118\", 3.00mm Width) · 12-WFDFN Exposed Pad · 16-SSOP (0.154\", 3.90mm Width) · 28-WFQFN Exposed Pad · 48-WFQFN Exposed Pad · SOT-23-6
- Interface
- I²C · MICROWIRE™, QSPI™, Serial, SPI™ · Serial · SPI · SPI, DSP
- Operating temperature
- -40°C ~ 85°C · -40°C ~ 125°C
- Package
- Tape & Reel (TR); Cut Tape (CT) · Tube
- Sampling rate (Per second)
- 1M · 3M · 13.75 · 188k · 200k · 225k · 250k · 300k · 480 · 500k
- Architecture
- SAR · Sigma-Delta
- Configuration
- ADC · MUX-S/H-ADC · S/H-ADC
- I/O channels
- 1 · 4 · 4, 8 · 6, 12 · 8, 15, 16
Shared specifications
- Mounting
- Surface Mount
Variant comparison
| Parameter | MAX1038AEEE+T | MAX1039AEEE+T | MAX1058BETM+ | MAX1067BEEE+ | MAX1085BESA+ | MAX11116AUT+T |
|---|---|---|---|---|---|---|
| Case | 16-SSOP (0.154\", 3.90mm Width) | 16-SSOP (0.154\", 3.90mm Width) | 48-WFQFN Exposed Pad | 16-SSOP (0.154\", 3.90mm Width) | 8-SOIC (0.154\", 3.90mm Width) | SOT-23-6 |
| Interface | I²C | I²C | MICROWIRE™, QSPI™, Serial, SPI™ | SPI | SPI | SPI |
| Operating temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 125°C |
| Package | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tube | Tube | Tube | Tape & Reel (TR); Cut Tape (CT) |
| Sampling rate (Per second) | 188k | 188k | 225k | 200k | 300k | 3M |
| Architecture | SAR | SAR | — | SAR | SAR | SAR |
| Configuration | MUX-S/H-ADC | MUX-S/H-ADC | — | MUX-S/H-ADC | S/H-ADC | S/H-ADC |
| I/O channels | 6, 12 | 6, 12 | — | 4 | 1 | 1 |
Request a quote on any MAX1xxx ADCs & Data Converters part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
