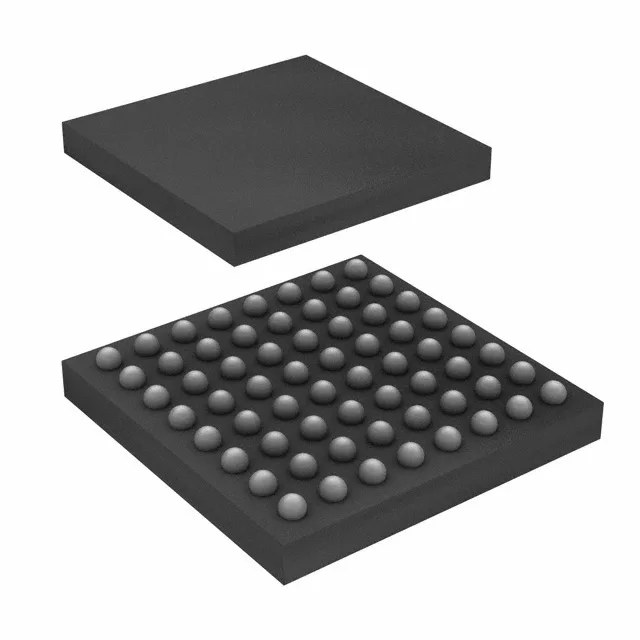

Analog Devices LTC3376EY#PBF, Quad Step-Down Buck Regulator, Adjustable Output, 12 A Total, 2 MHz Switching, 64-LFBGA (7x7 mm), Surface Mount, -40°C to 125°C.
| Parameter / Attribute | Specification / Value |
|---|---|
| Output type | Adjustable |
| Mounting | Surface Mount |
| Voltage - input | 20V |
| Voltage - output | 16.6V |
| Voltage - output (Min (Fixed)) | 0.4V |
| Output current | 12A |
| Frequency - switching | 2MHz |
| I/O channels | 4 |
| Operating temperature | -40°C ~ 125°C |
| Package | Tray |
| Function | Step-Down |
| Topology | Buck |
| Case | 64-LFBGA |
| Output configuration | Positive |
| Synchronous rectifier | Yes |
Factory lead times blocking production? We lock verified brand-new original stock in Shenzhen within 2 hours.
Direct access to Shenzhen floor inventory, franchised allocation buffers, and factory bonded stock to resolve line-down shutdowns.
Standard factory-sealed packaging compliant with EIA-481 standards for automated high-speed SMT pick-and-place lines.
High-resolution photos of original reel labels, 2D DataMatrix, and pin coplanarity sent via WhatsApp/Telegram before you release wire payment.
At 2 MHz the switching edges are fast enough that a few nH of stray inductance in the input loop will produce visible ringing on the switch node. Keep the input decoupling capacitors within 2–3 mm of the BGA ball-out, and use a solid ground plane on layer 2.
It is ROHS3 compliant (lead-free, no exemptions). For a new-design BOM this is a clean qualification target; no supply-chain clock is ticking.
No. It is suitable for new designs.
The LT8643SHV-2#PBF (single-output Silent Switcher 2, 6 A, 2.1 MHz, -40°C to 150°C) and the ADP2166ACPZ-R7 (single-output, 6 A, 1.4 MHz) are both single-channel buck regulators from the same supplier ecosystem. Neither is a drop-in replacement — the LTC3376EY#PBF is chosen specifically for its quad-output capability in a single BGA. If you only need one rail, a single-output part saves board area and BOM cost.
There is no exact replacement. The LTC3376EY#PBF is an active, current-production part from Analog Devices. No successor or second-source alternate is published. If you need a quad-output buck regulator in a similar footprint, the LTC3376EY#PBF is the part.
